Leak Sensor→Communication→Lorawan
IoT LoRaWAN leak detection sensor

LoRaWAN®-Enabled Leak Detection Sensor

Long-range, low-power networking for industrial IoT

  • LoRaWAN® v1.0.3, Class A compliant

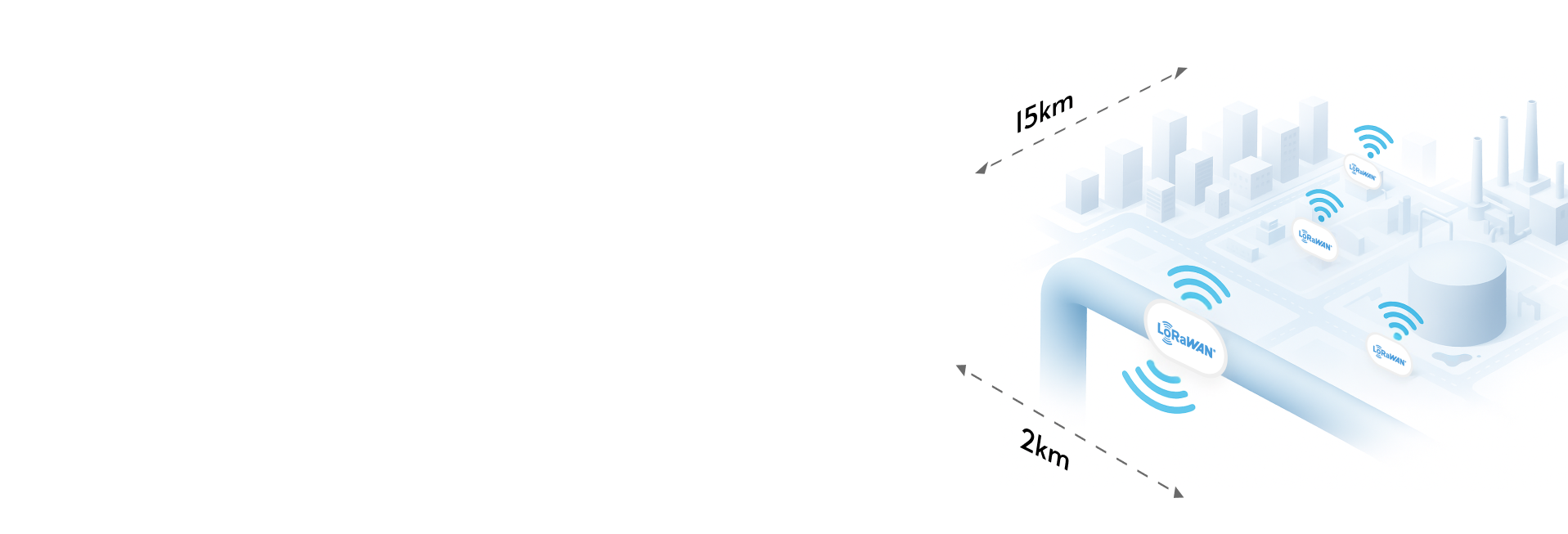

  • Penetrating signals with transmission up to 2 km in urban areas and up to 15 km in Open environments LOS
  • Ultra-low power consumption for extended battery life

Wireless BLE 5.2 Configuration

Fast, wireless configuration made simple

BLE sensor
icon1

Quick device provisioning and configuration via Bluetooth

icon2

Fast, simple commissioning for field deployments

icon3

On-site diagnostics & monitoring
without physical wiring

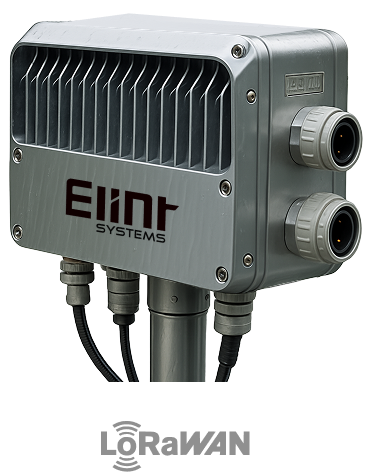

LoRaWAN® Transmission via Gateway & Network Server

nodes

LoRaWAN Nodes

↓
gateway

Master + Network Server

↓
cloud
↓
application

Application

AES Secured Payload

MQTTS

HTTPS

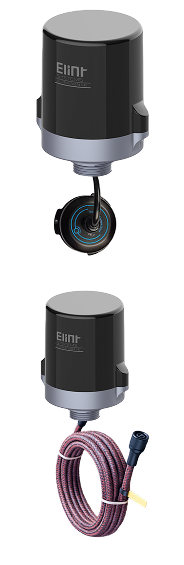

Advanced Leak Detection Sensors

Line

Provides continuous monitoring with zone-based detection along the entire sensing rope and spot-level precision for complete facility protection.

Industrial zone spot leak sensor providing early detection of water, oil, and chemical leaks in critical zones.

›PrecisionSpot Probe Sensor

Spot-level precision for targeted leak monitoring, ensuring accurate detection at critical points.

ZoneSense Rope Sensor‹

Zone-based detection across the full cable length, delivering broad coverage and continuous protection in wide-area applications.

Industrial zone spot leak sensor providing early detection of water, oil, and chemical leaks in critical zones.

Spot vs. Zone Leak Sensors

Spot

Spot Sensor

Zone

Zone Sensor

Trigger Condition
Left IconTriggers at liquid level of 2 mm
Right IconTriggers at liquid level of 10 mm
Sensing Mechanism
Left Icon2× Metal Probes for conductive liquids 1× Type Probe for chemicals
Right IconSensing Rope Cable
Detection Range
Left IconProbe type for point-specific leak detection
Right IconRope-type leak detection providing zone-based coverage for wide areas
Battery Life
Left IconUp to 5 years
Right IconUp to 5 years
Operating Temperature
Left Icon-20°C to +70°C
Right Icon-20°C to +70°C
Dimensions
Left IconØ 65 mm × 97 mm (H) ±2 mm
Right IconØ 65 mm × 97 mm (H) ±2 mm
Enclosure Protection
Left IconIP66 Waterproof Protection
Right IconIP66 Waterproof Protection
Communications
Left Icon
Right Icon
Applications
IconHospitals & Laboratories
IconData Center
IconOil & Fuel Storage Tanks
IconChemical Plants
IconIndustrial Facilities
IconHospitals & Laboratories
IconData Center
IconOil & Fuel Storage Tanks
IconChemical Plants
IconIndustrial Facilities

High-Sensitivity Leak Detection Ropes

Specialized sensing ropes provide zone-based monitoring along their entire length, delivering reliable leak detection across wide coverage areas with reduced false alarms.

Leak detection rope for early detection of water, oil, and chemical leaks in tanks, pipelines, and storage areas.

Water Detection Rope

  • •Detects fresh water, condensate, and moisture intrusion
  • •Functions as a water leak detector and moisture leak detector
Leak detection rope for early detection of water, oil, and chemical leaks in tanks, pipelines, and storage areas.

Oil & Fuel Detection Rope

  • •Special polymer coating for hydrocarbon detection
  • •Non-reactive to water, ensuring accuracy in diesel fuel leak detection sensors
Leak detection rope for early detection of water, oil, and chemical leaks in tanks, pipelines, and storage areas.

Acid & Chemical Detection Rope

  • •Chemically resistant design for aggressive liquids
  • •Works as a chemical leak detection sensor for acids, alkalis, and industrial fluids

Extended-Life Battery Power

Engineered for uninterrupted leak detection

Battery-powered leak detection sensor for remote and wireless monitoring of water, oil, and chemical leaks

Long-Lasting Power

19,000 mAh Li-SoCl₂ battery –designed for extended use in low-power devices

Low Power Consumption

Long-Lasting, High-Capacity Battery – Up to 5 Years*

Reliable Performance

Field-replaceable design - for simplified maintenance

IP66 Waterproof Protection

Industrial-grade waterproof leak sensor designed for continuous operation in wet and corrosive conditions.

Dust-tight and water-resistant enclosure with secure waterproof connectors, ensuring reliable operation in wet and industrial environments.

Industrial-grade waterproof leak sensor designed for continuous operation in wet and corrosive conditions.

Dust-tight Seal

Industrial-grade waterproof leak sensor designed for continuous operation in wet and corrosive conditions.

Waterproof Connectors

Quick-Install Industrial Leak Sensor

Designed for simple installation and space-efficient deployment

Feature icon

Mounting: Fits directly into 3/4" or 1" BSP

Feature icon

Dimensions: 65 mmØ × 97 mm (H) ±2 mm

Position

Position

Align & Insert

Align & Insert

Twist & Secure

Twist & Secure

Ready to Detect

Ready to Detect

Extreme Temperature Reliability

Ensures reliable performance in harsh industrial and commercial environments.

Temperature Sensor
Operating Temperature: 75 °C
Operating Temperature: -20 °C

Key Advantages

Leak detection sensor
Spot & Zone-Level Monitoring

Spot & Zone-Level Monitoring

Choose pinpoint detection at critical points or continuous coverage across long areas

Liquid-Selective Sensing

Liquid-Selective Sensing

Prevents false positives by targeting specific liquids

Flexible Installation

Flexible Installation

Easily deployed around equipment, along floors, or inside trays

Modular & Scalable

Modular & Scalable

Extendable design supports lengths up to 300 meters

Rugged Durability

Rugged Durability

Protective sheathing resists mechanical stress and chemical exposure

Applications

Mining
Mining
Data Centre
Data Centre
Oil & Fuel Storage Tanks
Oil & Fuel Storage Tanks
Marine & Offshore
Marine & Offshore
Industrial Facilities
Industrial Facilities

Tell Us About

Business Requirements

Select Your Country
+91
Enter Your Business Type

Got any Questions?

We’ve got answers.

What is a water leak detector?

A water leak detector identifies water leaks and moisture intrusion. Our IoT leak detection sensor provides spot and zone-level monitoring for fast alerts.

Can this sensor detect diesel or oil leaks?

Yes. The sensor supports diesel fuel leak detection and oil detection, making it ideal for fuel tanks and industrial facilities.

What connectivity options does the leak detection sensor offer?

The sensor supports LoRaWAN leak detection, NB-IoT, CAT-M1, and BLE 5.2 for wireless configuration.

How does a moisture leak detector work?

A moisture leak detector senses dampness or minor water intrusion. Integrated with our wireless leak detection sensor, it delivers real-time alerts to prevent damage to floors, ceilings, or sensitive equipment.

How durable is this industrial leak detection sensor?

Built for harsh conditions, the industrial leak detection sensor is IP66-rated, operates from -20°C to +70°C, and offers up to 5 years of battery life.

Where can this leak detection system be used?

It is ideal for hospitals, labs, data centers, industrial facilities, oil and fuel tanks, chemical plants, pump rooms, and underground utility areas.

How does an industrial leak detection sensor help?

It monitors water, chemicals, and fuel in real time with spot and zone accuracy, sending alerts to prevent damage and reduce downtime.
