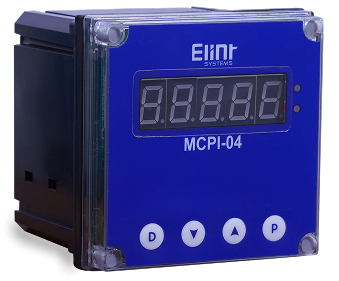

High-Accuracy Multi Channel Process Indicator for Industrial Applications

IconsIconsIcons
• Multi-Channel Process Monitoring
• Dual Indication Modes: Level / Volume
• 4–20mA / 0–20mA / 0–10V / 0-5V Analog Inputs
• Smart Conversion: Linear / Square Root / Lookup Table
• RS-485 & Modbus Connectivity
• G1–2 Configurable Relay Outputs
• 4½-Digit LED Display
• ±0.1% Accuracy, 13-Bit Resolution.
Multi-channel process indicator for industrial automation, high-accuracy measurement and monitoringThree Image

Universal Input Compatibility

Configurable input options to match application needs, ensuring precise measurement and dependable control across diverse industrial processes.

Flow indicator display
feature icon

4–20mA / 0–20mA / 0–10V / 0–5V analog inputs

feature icon

Industry-ready configurable inputs for seamless integration

feature icon

Ideal for flow, level, pressure monitoring and automation

Flexible Channel Architecture

for Industrial Automation

Scales effortlessly from simple setups to complex operations with this multi-channel process monitor

Single-channel or dual-channel models

Single-channel or dual-channel models

Multi-sensor adaptability

Multi-sensor adaptability

Expandable to 2 max channels

Expandable to 2 max channels

Intelligent Digital Display

Experience precise, real-time insights with a long range visibility display designed for critical process monitoring

4½-Digit LED

4½-Digit LED

Bright and easy-to-read for instant level, volume, or process readings

Real-Time Monitoring

Real-Time Monitoring

Quickly visualize process values for faster, confident decision-making

Long Range Visibility • High Brightness LED

Communication & Connectivity

Mastery

Seamless integration with industrial networks for real-time monitoring and control.

RS-485 Interface

RS-485 Interface

Reliable wired communication for robust industrial environments

Modbus Protocol Support

Modbus Protocol Support

Ensures easy integration with SCADA, PLCs, and other automation systems

Industrial GradeReal-time DataSCADA Ready

Multi-Programmable Indication & Control

Fully configurable monitoring to match your process requirements with precision

Level Thresholds

Level Thresholds

Program high and low levels to trigger alerts or control actions

Relay Outputs

Relay Outputs

Control pumps, alarms, or other devices automatically

Custom Logic

Custom Logic

Tailor monitoring behavior to your specific application

Smart Conversion Modes

Transforms sensor inputs into reliable level, volume, or flow readings with arithmetic processing and data logging for industrial use

Multi-channel process indicator
Linear, Square Root, or Lookup Table

Linear, Square Root, or Lookup Table

Reliable level, volume, or flow measurement.

Multi-Signal Compatibility

Multi-Signal Compatibility

Works with various industrial process signals.

LinearSquare RootLookup Table

Configurable Relay Outputs

Flexible relay control to automate processes and trigger alarms with accuracy and safety

1 or 2 Relays

1 or 2 Relays

Choose single or dual relay configuration for your application

Rated 220V / 5A

Rated 220V / 5A

Handles standard industrial loads reliably

On/Off Control

On/Off Control

Perfect for level alarms, pump control, or process automation

220V
Voltage Rating
5A
Current Rating

Ultimate Measurement Precision

Engineered for stable, reliable readings even in the most demanding industrial conditions

±0.1% Span Accuracy

±0.1% Span Accuracy

0.1%

Ensures highly precise measurements

13-Bit Resolution

13-Bit Resolution

13-bit

Captures fine details for superior process control

Minimal Temperature Drift

Minimal Temperature Drift

0.1/°C

Typical 0.1 Count/°C for consistent performance

±0.1%
Accuracy
13-bit
Resolution
0.1/°C
Drift

Optimized Industrial Power Efficiency

Designed for stable, reliable operation while minimizing energy consumption

Flexible Power Input

Flexible Power Input

220 V AC ±15% or 8–24 V AC/DC (factory configurable)

Ultra-Low Consumption

Ultra-Low Consumption

Draws less than 1 W for energy-efficient operation

Universal Frequency Support

Universal Frequency Support

Compatible with 50/60 Hz systems worldwide

IoT-Enabled MCPI Process Connectivity

Sensor Inputs

Sensor Inputs

Captures real-time process parameters via analog signals.

MCPI Controller

MCPI Controller

Converts inputs into actionable data & enables relay-based process automation.

RS-485 Communication

RS-485 Communication

Reliable, industry-standard interface for seamless data transfer.

Voyager 4G Gateway:

Voyager 4G Gateway:

Pushes data securely to the cloud with plug-and-play integration

Cloud Dashboard

Cloud Dashboard

Visualize, analyze, and control operations anytime, anywhere.

Extreme Temperature Endurance

Designed to maintain precise readings under harsh temperatures for multi-channel process monitoring systems.

Operates in -10°C
Operates in -10°C
+60°C capability
+60°C capability
Stores in -40°C
Stores in -40°C
+85°C Stores
+85°C Stores

Benefits of Smart Multi-Channel Process Indicator

benefit-icon

Improved Decision-Making

Get real-time, accurate process data so operators can act faster and avoid guesswork.

benefit-icon

Increased Safety & Reliability

 Prevent tank overflows, dry runs, and process failures with early alerts and automated responses.

benefit-icon

Higher Productivity

Monitor multiple channels simultaneously, reducing manual checks and saving valuable operator time.

benefit-icon

Simplified Operations

 One device handles multiple inputs and conversions, eliminating the need for multiple meters or controllers.

benefit-icon

Future-Ready Scalability

Start with a single channel and expand up to dual-channel setups without changing your system.

benefit-icon

Environmental Durability

Dependable performance in tough industrial conditions ensures uninterrupted operations.

Product Specifications

Comprehensive details for performance, reliability, and integration.

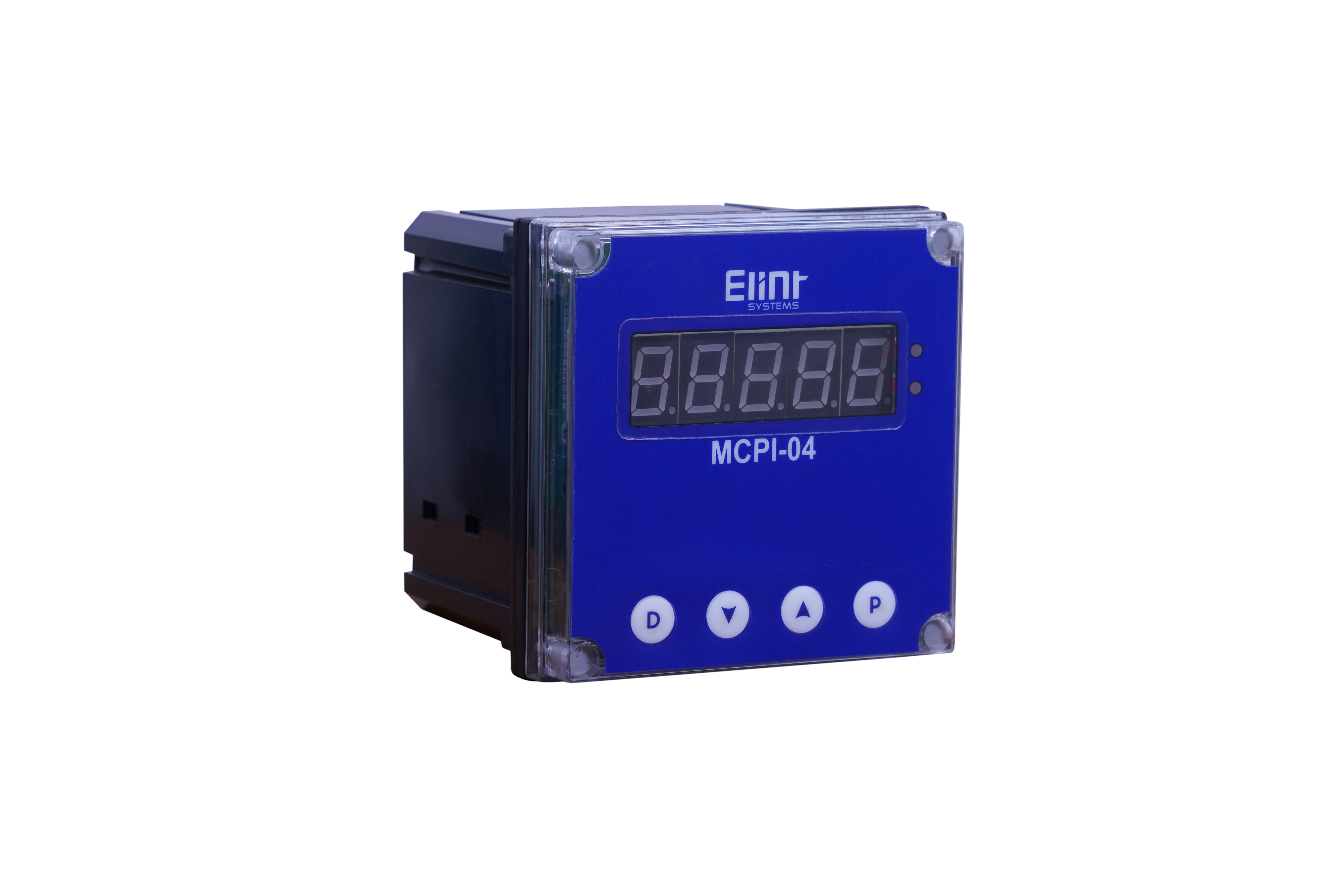

Multi-Channel Process Indicator

Multi-Channel Process Indicator

Smart, programmable process indicator for multi-signal level, flow, and automation applications.

Description of image

INPUT SIGNALS

  • 4-20 mA / 0-20 mA / 0-10 V / 0-5 V analog inputs
  • Single-channel or dual-channel models
  • Configurable for flow, level, and pressure monitoring
  • Smart conversion: Linear / Square Root / Lookup Table

DISPLAY & INDICATION

  • 4½-Digit LED Display - Bright, long-range visibility
  • Dual Indication Modes - Level or Volume display
  • Real-time monitoring for instant process insights

COMMUNICATION

  • RS-485 interface for reliable wired communication
  • Modbus RTU protocol for SCADA/PLC connectivity
  • Easy integration with industrial automation systems

RELAY OUTPUTS

  • 1-2 configurable relays
  • Rated: 220 V / 5 A (standard industrial loads)
  • Supports alarms, pumps, and process automation
  • Programmable high/low thresholds with setpoint alarms

MEASUREMENT PERFORMANCE

  • Accuracy: ±0.1% of span
  • Resolution: 13-bit
  • Temperature drift: 0.1 Count/°C
  • Stable readings under demanding conditions

POWER SUPPLY

  • Input: 220 V AC ±15% or 8-24 V AC/DC (factory configurable)
  • Frequency: 50/60 Hz universal compatibility
  • Power Consumption: 1 W (ultra-low power)

OPERATING ENVIRONMENT

  • Operating Temperature: -10°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Designed for industrial process monitoring in harsh environments

Use Cases

Industrial Storage Tank
Use Case

Industrial Storage Tank

Water Level monitoring
Use Case

Water Level monitoring

Fuel tank monitoring
Use Case

Fuel tank monitoring

Smart silos
Use Case

Smart silos

Water reservoir monitoring
Use Case

Water reservoir monitoring

Diesel Tank Monitoring
Use Case

Diesel Tank Monitoring

Tell Us About

Business Requirements

Select Your Country
+91
Enter Your Business Type

FAQ

What is a multi-channel process indicator?

A multi-channel process indicator (MCPI) is an advanced industrial device that monitors and displays multiple process variables simultaneously. It provides real-time visualization of critical parameters such as temperature, pressure, flow, and level across different channels, allowing operators to maintain optimal process control and efficiency.

How does it work with level and volume measurements?

The MCPI interfaces with various level sensors (ultrasonic, radar, pressure transmitters) to provide accurate level and volume measurements. It processes the raw sensor signals, applies tank geometry calculations, and displays the results in engineering units. Advanced models also offer volume conversion for irregular tank shapes and can provide trend analysis for inventory management.

Can it be integrated with SCADA or PLC systems?

Yes, MCPIs are designed for seamless integration with industrial automation systems. They support multiple communication protocols including Modbus RTU/TCP, Profibus, Ethernet/IP, and OPC UA. This allows for bi-directional data exchange with SCADA systems, PLCs, and DCS networks, enabling centralized monitoring and control.

What types of signals does a MCPI support?

MCPIs are versatile devices that support a wide range of input signals including: 4-20mA current loops, 0-10V voltage signals, thermocouples (J, K, T, E types), RTDs (PT100, PT1000), pulse/frequency inputs, and digital I/O. Most units also provide analog outputs for control purposes and relay outputs for alarm functions.

Is this MCPI suitable for harsh industrial environments?

Yes, industrial-grade MCPIs are built to withstand harsh conditions. They typically feature NEMA 4X/IP66 rated enclosures for dust and water resistance, wide operating temperature ranges (-20°C to +70°C), immunity to electrical noise and vibration, and chemical-resistant finishes. Some models are specifically designed for hazardous areas with ATEX or IECEx certifications.

Can the MCPI trigger automated control actions?

Absolutely. MCPIs can be configured to trigger automated control actions based on predefined setpoints. They feature programmable relay outputs, analog control outputs, and digital outputs that can activate pumps, valves, alarms, or other control devices. Advanced logic functions allow for complex control sequences and interlock operations.

Is the MCPI expandable for future process monitoring needs?

Most MCPI systems are designed with scalability in mind. They typically support modular expansion through additional I/O cards, communication modules, or software upgrades. This allows users to add more channels, implement new protocols, or upgrade functionality as process requirements evolve, protecting the initial investment.
