UltraLevel Max: The Most Accurate Wireless Radar Level Sensor for Industrial Tanks

Radar LevelLorawanLTE-MNB-IOT
• Millimeter-Wave Radar Accuracy
• Bluetooth 5.2 Configuration
• Solar-Powered with 72h Backup
• LoRaWAN / CAT-M1 / NB-IoT Connectivity
• Long-Life 10K Cycle Battery
• GPS + Temperature Monitoring*
• IP66 Waterproof + UV Resistant
• Universal Tank Compatibility

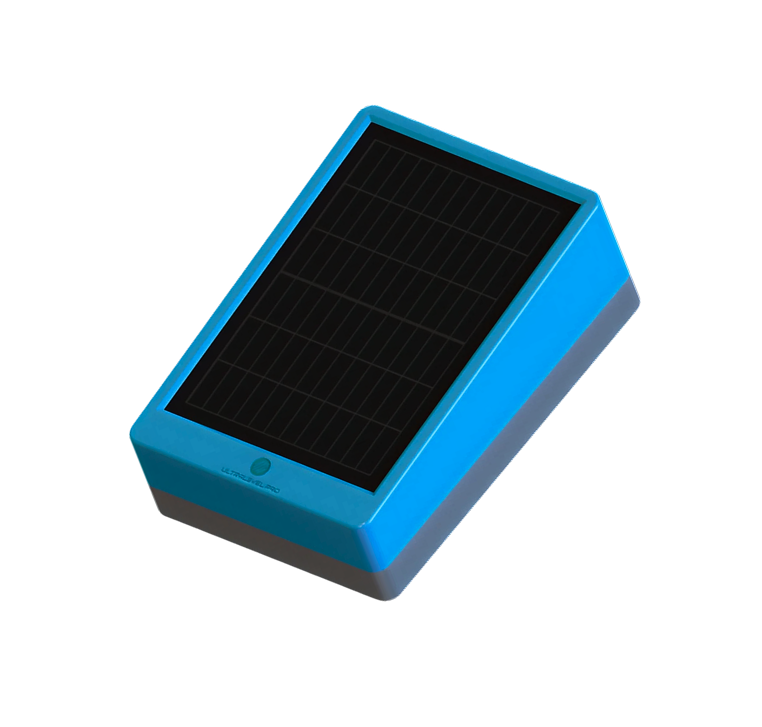

UltraLevel Max radar level sensor powered by solar energy, real time fill level monitoring, IoT enabled with LoRaWANGroup Icons
Radar fill level sensor

The Ultimate Radar Sensor for Mission-Critical Monitoring

Built with next-gen industrial intelligence for tanks that can't fail. When precision, uptime, and safety matter—choose UltraLevel Max

Unleash Superior Wireless
Signal Reach

LoRaWAN connectivity with 2–15 km LOS range delivers seamless, low-power communication for remote tank monitoring.

lorawan-logo
wifi-left
wifi-right
2km2km
devicethunder

Triple-Redundant Power Source Topology

Designed with intelligent multi-source energy architecture to keep your data flowing—so your sensor never misses a beat.

Solar plate

Solar plate

Radio frequency

Radio frequency

APU

APU

Seamless Wireless Configuration with BLE

UltraLevel Max Radar

BLE 5.2 Up to 20 m

BLE Icon
Mobile Radar
Wave Graphic

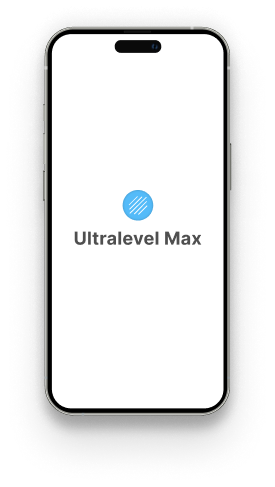

Connect effortlessly to the Ultralevel Max app for real-time sensor monitoring and configuration within a 20-meter range

Advanced Measurement Performance

Engineered for precise, non-contact level sensor measurement

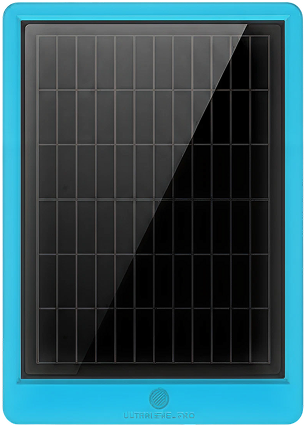

UltraLevel Max radar level sensor
Superior Accuracy

Superior Accuracy

±0.5% FSR (150 mm to 10 meters)

Wide Measurement Range

Wide Measurement Range

30 mm to 10 meters

High Resolution

High Resolution

Up to 1 mm granularity

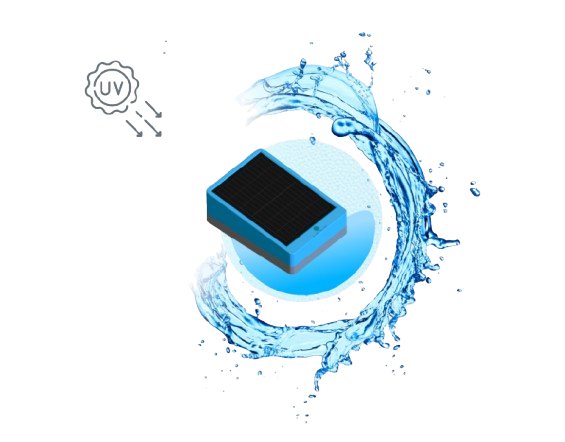

Durable radar sensor with waterproof design for precise liquid level measurement

IP66 Waterproof. Built for Wet, Wild Conditions

UV-stabilized

Tested for high-pressure water exposure and prolonged UV radiation— purpose-built for outdoor tank applications and rugged industrial environments.

Advanced Measurement Performance

Engineered for precise, non-contact level sensor measurement

Pulse ellipse

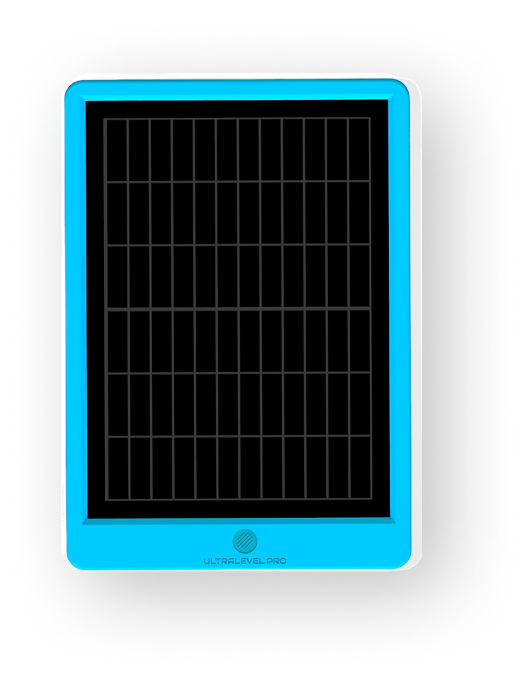

center-device
temp-icon+85°C capability
temp-iconOperates in -20°C

280mAh

Battery Frame

Solar-Powered Resilience

Tick

Works Without Sunlight for 72 Hours

Tick

Durable 280mAh battery powered radar level sensor,ensuring continuous monitoring even during cloudy days or indoor installations.

Tick

Ensuring uninterrupted performance across 10,000+ charge cycles

Universal Tank Compatibility

Big or small, tall or wide—Ultralevel Max is designed to adapt across versatile tank sizes & shapes, making it the ultimate choice for diverse industrial applications.

IBC TankIBC Tank
Overhead TanksOverhead Tanks
SilosSilos
Underground TanksUnderground Tanks

Smarter Cloud Communication

CATM1 & NB-IoT Enabled

Empowering radar-based fill level sensors with robust LPWA connectivity for continuous, low-power operation—secured by a durable 17Ah primary battery.

GPS Location Tracking

GPS Location Tracking

Temperature Monitoring

Temperature Monitoring

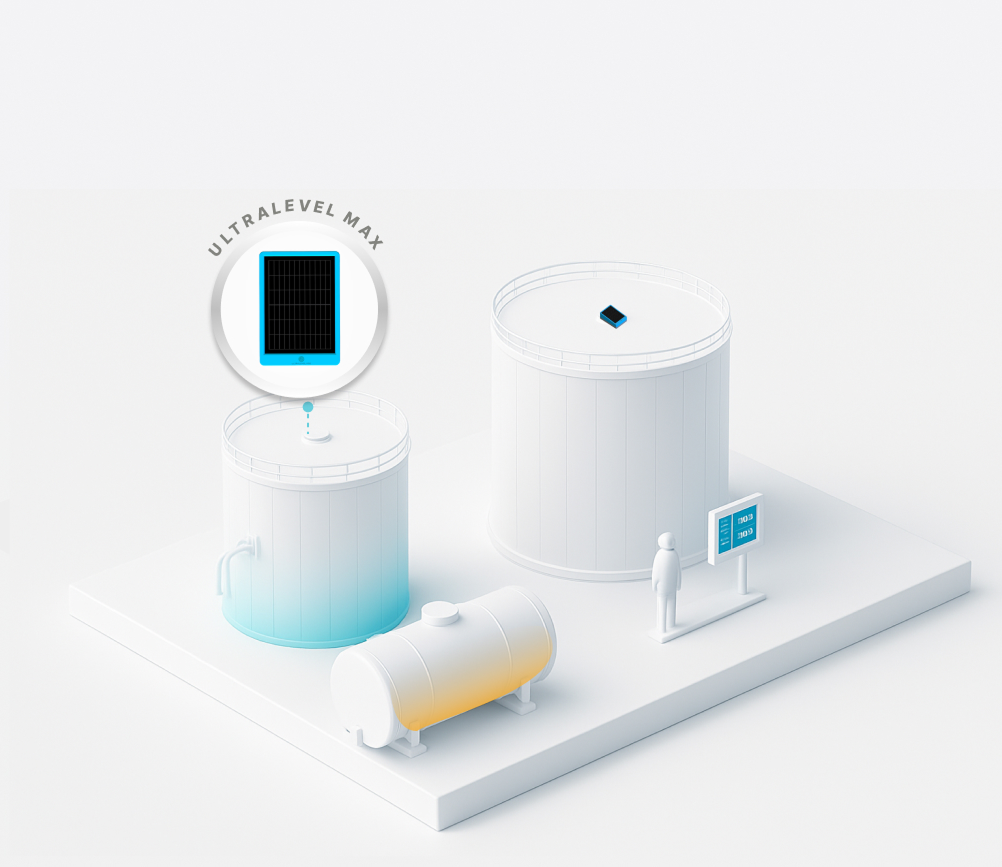

Fill Level Monitoring

Fill Level Monitoring

Impact Detection

Impact Detection

Compact & Industrial Radar Level Transmitters

Extended Variant – CAT-M1 / NB-IoT Powered
Icon

Radar-Based Non-Contact Sensing – precise level monitoring

Icon

Direct-to-Cloud Communication – seamless LPWA connectivity

Icon

Versatile Industrial Use — Reliable indoors & outdoors

Compact Variant – LoRa Enabled
Icon

LoRaWAN 1.0.3 Class A / Peer-to-Peer communication

Icon

Ultra-low power, long-range tank monitoring

Icon

Ideal for indoor & outdoor applications

ATEX-Certified for Extreme Environments

UltraLevel Max provides dependable, compliant performance in explosive and high-risk industrial settings.

ATEX certified radar sensor

Benefits

Accurate, wireless, and maintenance-free level monitoring

Non-Contact Radar Measurement

Non-Contact Radar Measurement

Uses 60 GHz radar to measure without touching the liquid, preventing contamination and reducing wear.

Consistent High Accuracy

Consistent High Accuracy

Delivers 1 mm resolution even with vapor, foam, agitation, or temperature changes.

Wireless & Solar Powered with BLE

Wireless & Solar Powered with BLE

Solar-powered with LoRaWAN, LTE Cat M1, NB-IoT, plus BLE for quick on-site setup.

Built for Harsh Environments

Built for Harsh Environments

UV-stabilized, IP66 waterproof housing designed for extreme outdoor and industrial conditions.

Quick, Tool-Free Installation

Quick, Tool-Free Installation

Compact design with adhesive mounting allows fast deployment without drilling or welding.

Product Specifications

Comprehensive details for performance, reliability, and integration.

Ultralevel Max

Ultralevel Max

Delivering Reliable Precision for Every Industrial Measurement.

spec-icons

Radar Specifications

  • Measurement Range: 30mm to <10 meters
  • Radar Frequency: 60 GHz
  • Radar Beam Angle: 10.8°
  • Resolution: 1 mm
  • Accuracy: 0.5% FSR 150mm to 20 meters
  • Update Rate: 1 sec configurable

Power and Durability

  • Power Source: Solar Panel 1W & AUX 5V
  • Battery Capacity: Long Life 10K Charge Cycle
  • Installation: 3M Double-sided adhesive
  • Operating Temperature: -20°C to 85°C
  • Humidity Range: 45% to 95%
  • Housing Material: UV-stabilized
  • Protection Class: IP66 WaterProof
  • Weight: 150g
  • Dimensions: 110 × 88 × 32 mm

Wireless & Wired Connectivity

  • Bluetooth BLE 5.2 | Tx Power up to +8dbm
  • RS485 / 0–4V Output for wired integration
  • LoRaWAN IN868MHz | Tx Power up to +20dbm
  • LoRaWAN support Class A / P-to-P communication
  • LTE Cat M1 / NB-IoT (optional)
  • Range: Up to 2KM LOS

Use Cases

Overhead Water Tanks
Use Case

Overhead Water Tanks

IBC tank Monitoring
Use Case

IBC tank Monitoring

Automated production
Use Case

Automated production

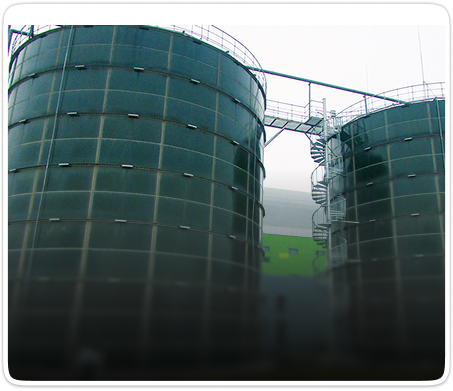

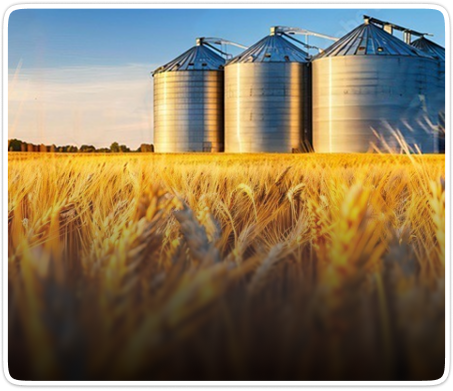

Smart silos
Use Case

Smart silos

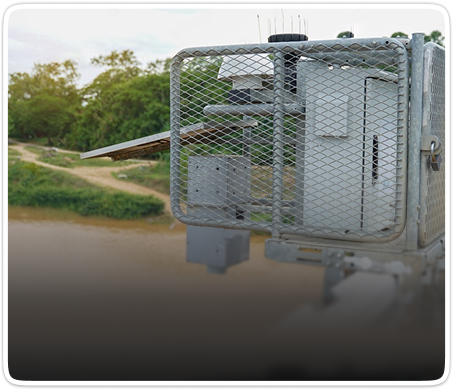

Water reservoir monitoring
Use Case

Water reservoir monitoring

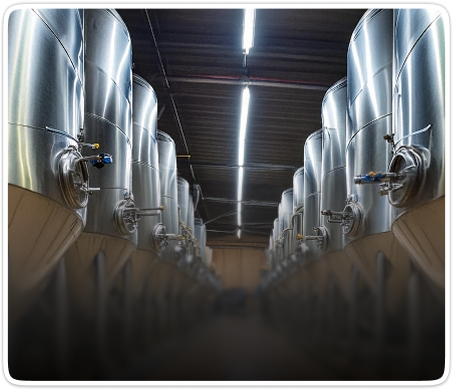

Beverage Storage Tanks
Use Case

Beverage Storage Tanks

Tell Us About

Business Requirements

Select Your Country
+91
Enter Your Business Type

FAQ

What type of sensor technology does UltraLevel Max use?

UltraLevel Max is a non-contact radar level sensor for precise, continuous liquid measurement in industrial tanks, offering a non-invasive, high-accuracy solution.

Can UltraLevel Max radar sensor be used for all industrial tanks?

Yes. UltraLevel Max is a wireless radar level transmitter that works with big or small tanks, tall or wide, offering universal tank compatibility. It’s perfect for chemical, fuel, and water tanks in harsh industrial environments.

How accurate is UltraLevel Max radar level sensor?

This radar liquid level sensor delivers superior accuracy with ±0.5% FSR and up to 1 mm resolution, even in conditions with vapor, foam, or agitation. It’s ideal for industries needing high-frequency radar level sensors for reliable, real-time monitoring.

Is UltraLevel Max a battery-powered radar sensor?

Yes. UltraLevel Max is a battery-powered wireless radar level sensor featuring a hybrid solar system and a 280mAh backup battery. It operates continuously for up to 72 hours without sunlight, ensuring uninterrupted level monitoring even in remote or power-limited sites.

How does it compare with ultrasonic systems?

Unlike ultrasonic level sensors, UltraLevel Max uses 60 GHz radar for superior penetration, higher accuracy, and reliability in foam, vapor, or turbulent liquids. It’s a true radar fill level sensor for industrial-grade performance.

What industries can benefit from UltraLevel Max?

UltraLevel Max is ideal for any operation requiring smart level monitoring, including chemical, pharmaceutical, water treatment, fuel storage, and industrial manufacturing. Its wireless radar level transmitter technology ensures uptime, accuracy, and safety for mission-critical monitoring.
