Voyager SatX – Hybrid Satellite + LTE Cargo Tracker for Fleet & Container Monitoring

IconIconIconIcon
• Satellite + LTE Hybrid Connectivity
• Rugged IP67 Weatherproof Design
• Land & Sea Cargo Tracking
• Built-in High-Gain Antennas
• Solar Powered + Long Battery Backup
• Cloud & Mobile Fleet Dashboard
• Tamper & Motion Detection Alerts
• Easy No-Wiring Installation

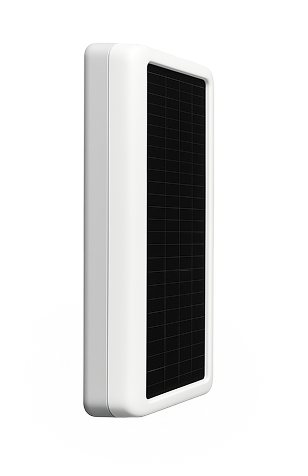

Hybrid cargo tracking sensor with battery and external power support for continuous IoT-based shipment monitoring.Three Icon

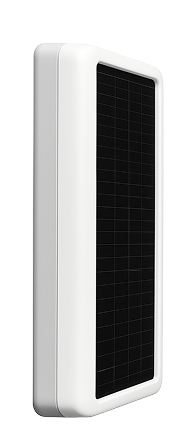

Device

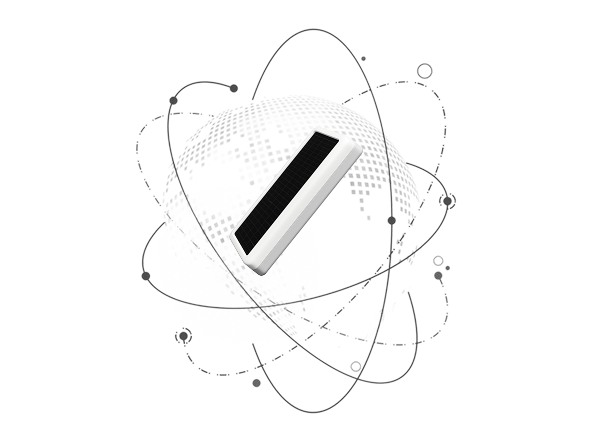

Advanced Multi-Network Communication

Reliable land & sea cargo tracking sensor with hybrid cellular, satellite, and low-power wireless connectivity

Satellite Communication (GEO + LEO)Satellite Communication (GEO + LEO)
LTELTE
Cat-M1Cat-M1
NB-IoTNB-IoT

Long-Lasting Battery for Fleet Monitoring

Reliable energy to keep your shipments monitored 24/7 with Voyager SatX

Primary Battery

Primary Battery

14 Ah Li-SOCl₂ (3.7 V)

Secondary Battery

Secondary Battery

450 mAh Li-ion (3.7 V)

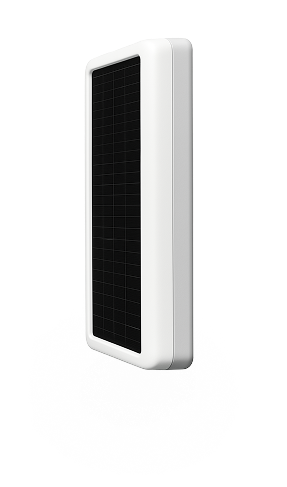

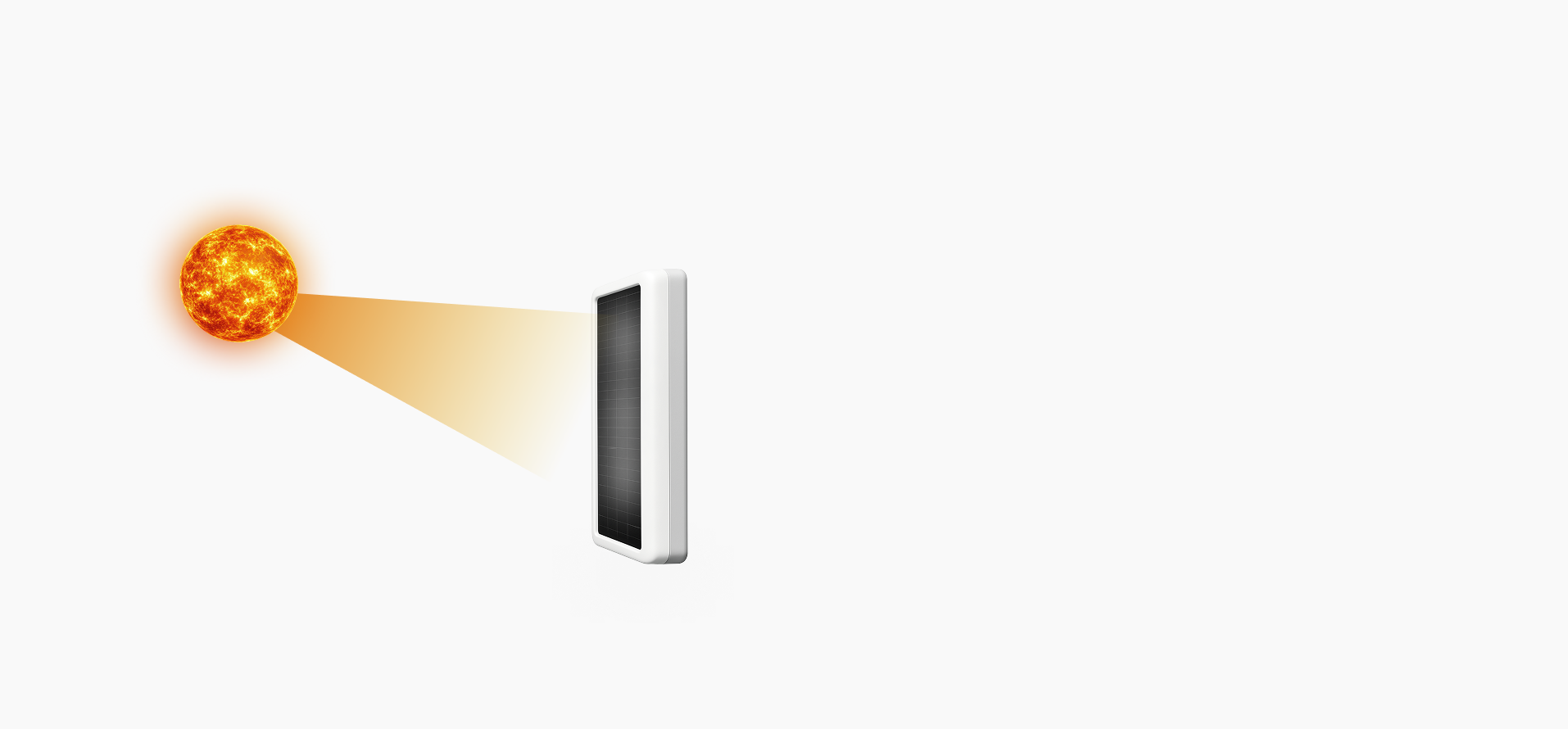

Solar-powered fleet tracking sensor

Solar-Powered Reliability for Asset Tracking

Efficient, durable power to keep your fleet monitoring smoothly

Panel Type

Panel Type

6 VDC, 1 W

Shielding

Shielding

ETFE for durability and weather resistance

Flexible Sim Connectivity

Ensuring seamless connectivity with our cargo tracking system

eSIM

Seamless digital SIM for easy remote provisioning

and global coverage.

Micro SIM

Reliable cellular connection for

standard networks.

Internal Banner

Robust Internal Memory

16 MB internal flash memory ensures reliable retention and seamless performance for storing your asset data.

High-Precision Motion Sensor

Advanced detection of motion and impacts for enhanced asset monitoring.

Motion Sensor
sensor icon

Sensor Type: 3D Axis Digital Accelerometer

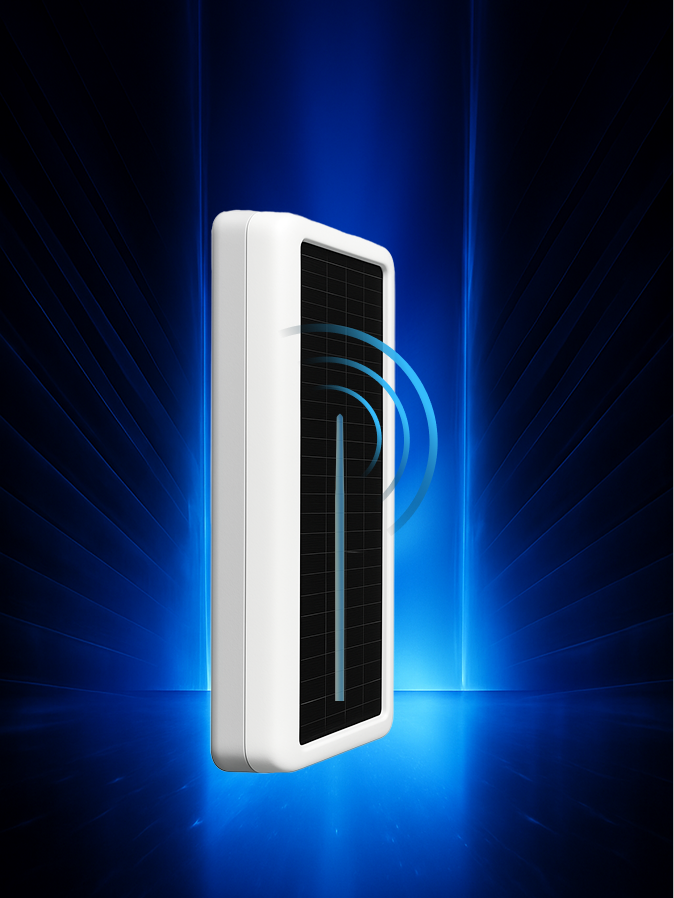

Antenna System

Advanced Antenna System

Optimized for logistics cargo tracking with high-performance connectivity.

GNSS Antenna

GNSS Antenna

Internal high-gain antenna for precise location tracking

Cellular Antenna

Cellular Antenna

Internal high-gain antenna for seamless network connectivity

Satellite Antenna

Satellite Antenna

Internal high-gain dBi antenna for reliable satellite communication

BLE Antenna

BLE Antenna

Internal low-power antenna for efficient short-range communication

Firmware Banner

Configuration & Firmware Updates

Seamless setup and maintenance for hybrid cargo tracking.

• Firmware Updates (FOTA): Web-based or over BLE 5.2 for easy remote upgrades.

• Device Configuration: Simple and flexible setup to optimize performance.

Extreme Temperature Resilience

Ideal for cold chain, Sea, and desert logistics conditions.

Cold
Operates in -20°CIcon
Stores in -40°CIcon
Hot
+85°C capabilityIcon
+85°C capabilityIcon
Device
Logistics Banner

Precision Tracking for Logistics

Live alerts and precise location tracking to keep your assets secure

• Temperature & Humidity

• Door Status & Vibration

• Loading & Unloading

• Geo Location & Geo-Fencing

• Route Deviations & Demurrage

Cargo Tracking Operation

Seamless Hybrid Communication for Uninterrupted Global Cargo Tracking

wave
Hybrid Communication

Hybrid Communication

Uses cellular on land and satellite at sea for continuous tracking.

Data Transmission

Data Transmission

Sends tracking data to cellular towers or satellite base stations.

Cloud Integration

Cloud Integration

Data securely processed on the Elint Cloud Server.

Dashboard Access

Dashboard Access

View live location, route, and alerts via Web or Mobile Dashboard.

Plug and Play Banner

Plug & Play Installation

Quick and effortless setup, easy to place anywhere in your cargo.

• Dimensions : 250mm x 50mm x 100mm (L x H x W)

• No complex wiring required

• Minimizes downtime and deployment effort

Tracking Sensor Banner

Unified Cargo Tracking Sensor

Compact. Connected. Intelligent. Everything your cargo needs in a single device

All-in-One Tracking

One sensor tracks GPS location, temperature, humidity, vibration, and door status in real time.

Hybrid Connectivity

LTE / NB-IoT on land, Satellite at sea—continuous tracking anywhere.

Solar-Powered

Built-in solar panel with long-life battery enables continuous, maintenance-free operation.

Cargo Condition Alerts

Instantly notifies temperature drift, door access, and impact to ensure cargo safety.

Smart Geo-Alerts

Real-time alerts for route deviation, zone entry/exit, and demurrage.

Cloud Integration

Securely syncs data with Elint Cloud for analytics, dashboards, and API access.

Benefits Of Voyager SatX

Global Visibility

Global Visibility

Track shipments globally with hybrid GPS + satellite connectivity — no coverage gaps.

Real-Time Insights

Real-Time Insights

Get instant location and motion updates to optimize routes, reduce downtime, and improve delivery efficiency.

Cargo Security

Cargo Security

Stay protected with real-time tamper and movement alerts, ensuring shipment safety throughout the shipment.

Uninterrupted Operation

Uninterrupted Operation

Stay powered continuously with solar-assisted energy and reliable long-life backup.

Dependable Performance

Dependable Performance

Keep tracking active in any weather or terrain with rugged, IP67 protection.

Effortless Control

Effortless Control

Save time with quick plug-and-play setup and real-time visibility on the Elint Cloud Dashboard.

Product Specifications

Comprehensive details for performance, reliability, and integration.

Voyager SatX

Voyager SatX

Reliable performance for end-to-end shipment tracking across land and sea.

Description of image

GENERAL SPECIFICATIONS

  • Technology: LTE CatM1 / NB1 / EDGE / GPRS / GNSS / SATELLITE / BLE 5.2
  • Memory: 16 MB internal flash memory
  • SIM: Micro-SIM / eSIM
  • Enclosure: Integrated Solar Housing
  • Dimensions: 250 mm × 50 mm × 100 mm (L × H × W)
  • Weight : 770 grams

COMMUNICATION INTERFACES

  • Cellular: LTE CatM1 / NB-IoT
  • Satellite: LEO – 2 min to 20 mins Max GEO / ~2.5 sec latency
  • GNSS: GPS / BeiDou / Galileo / GLONASS
  • Wireless Local: BLE 5.2 (Low Power)
  • Antennas: Internal GNSS / Cellular / SATELLITE / BLE 5.2 Antennas

HARDWARE SPECIFICATIONS

  • Digital Inputs: Box open / Tampering alert
  • GNSS Antenna: Internal high-gain antenna
  • Cellular Antenna: Internal high-gain antenna
  • Satellite Antenna: Internal high-gain dBi
  • BLE Antenna: Internal low-power antenna
  • LED: 3-status indication LEDs

Sensors & Power

  • Sensor Type: 3-Axis Accelerometer, 16-bit resolution (motion & impact detection)
  • Solar Panel: 6 VDC, 1 W panel with ETFE shield
  • Primary Battery:14 Ah Li-SOCl2 battery (3.7 V)
  • Backup Battery: 450 mAh Li-ion 3.7 V
  • Sleep Modes: PS Sleep / Deep Sleep / Tracking Mode
  • Firmware / Config: FOTA Web Update / BLE 5.2 App Configuration

Operating Environment

  • Operating Temperature (no battery): −20°C to +85°C
  • Storage Temperature (no battery): −40°C to +85°C
  • Operating Humidity: 5% to 95% non-condensing
  • Battery Charge Temperature: 0°C to +45°C
  • Battery Discharge Temperature: −20°C to +60°C
  • Battery Storage (Short Term): −20°C to +45°C for 1 month
  • Battery Storage (Mid-Term) : −20°C to +35°C for 6 months
  • Primary Battery Discharge : −60°C to +85°C

GNSS Performance

  • Velocity Accuracy : 0.1 m/s (±15% error)
  • Hot Start : 1 s
  • Warm Start : 25 s
  • Cold Start: 35 s

Use Cases

Cold Storage Containers
Use Case

Cold Storage Containers

Shipping Containers
Use Case

Shipping Containers

Rail Freight Containers
Use Case

Rail Freight Containers

Cold Cargo Trucks
Use Case

Cold Cargo Trucks

Logistics Truck
Use Case

Logistics Truck

Sea Freight Cargo
Use Case

Sea Freight Cargo

Tell Us About

Business Requirements

Select Your Country
+91
Enter Your Business Type

FAQ

What is the Voyager SatX real-time cargo tracking sensor used for?

Voyager SatX is an IoT-based GPS and satellite hybrid cargo tracking device designed for global logistics, fleet management, and container monitoring with real-time visibility and security alerts.

How does the Voyager SatX hybrid GPS and satellite cargo tracker work?

It uses multi-network communication - CAT M1, NB-IoT, BLE 5.2, and satellite - to provide uninterrupted cargo tracking across land and sea, even in remote areas with no cellular coverage.

Does Voyager SatX support real-time location and motion alerts?

Yes, Voyager SatX delivers real-time GPS tracking, motion detection, and tamper alerts through its built-in 3D accelerometer and GNSS antenna system.

Is the Voyager SatX suitable for cold chain and sea logistics?

Absolutely. It operates reliably from −20°C to +85°C, making it ideal for cold chain, desert, and maritime cargo tracking conditions.

What kind of power options does Voyager SatX offer for fleet tracking?

It features a solar-powered system with a 14Ah primary Li-SOCl₂ battery and 450mAh backup, ensuring uninterrupted tracking for long-duration shipments.

Can Voyager SatX be used for remote cargo monitoring without wiring?

Yes, the device offers plug-and-play installation with no wiring, enabling quick deployment for container and fleet tracking.

How does Voyager SatX improve supply chain transparency?

By integrating GNSS, cellular, and satellite connectivity, Voyager SatX provides real-time asset visibility, route deviation alerts, and data logging for complete supply chain transparency.
