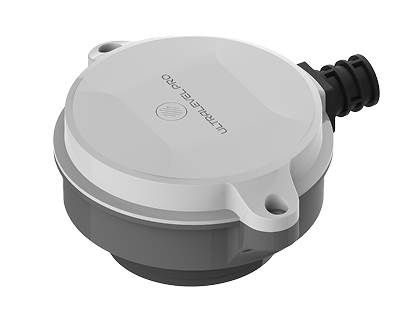

UltraLevel Pro: The Radar Level Sensor for Accurate Tank
Measurement

Radar LevelBLERS485
•UV-Stabilized Enclosure
•1 mm High-Resolution Sensing
•Compact 1.25 BSP Mounting
•BLE 5.2 Wireless Configuration
•IP65 Waterproof Build
•20 mm – 20 m Radar Range
•< ±0.5% FSR Accuracy
•RS485 / 0-4V / Dual Switch Relay
Industrial Radar

Global Leader in Industrial Radar Level Sensing

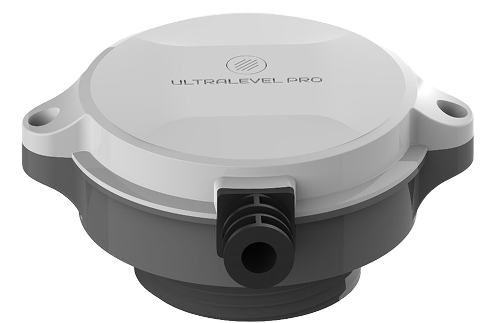

BLE radar sensor for Bluetooth-based tank level monitoring and data loggingarrowbottom

From 20mm to 20m — Consistent Performance Across All Tank Sizes & Shapes

With real-time 1-second updates, rugged IP65 durability, and 60GHz radar accuracy, it tracks every drop—from tiny sips to massive fills—without missing a beat.

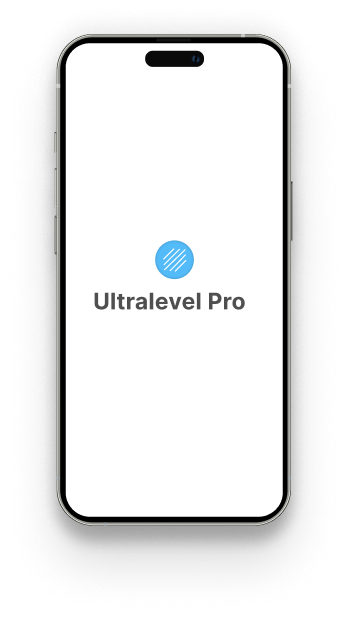

Connect Instantly. Control Effortlessly

Left Sensor
BLE Icon
Right Mobile Interface

Versatile Output Suite for Industrial Integration.

Perfect for intelligent tank monitoring, alarms, and process control.

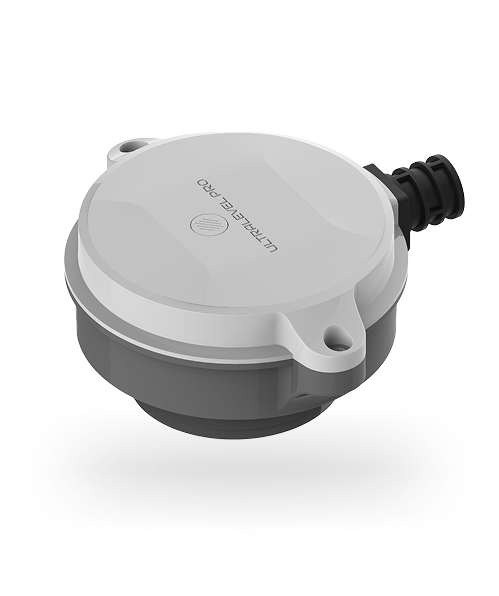

Wireless radar level sensor for remote liquid and tank level measurement

0-4V Analog O/P

Flexible monitoring support

Analog

Dual Switch Relays

Configurable for High & Low alarms

Relay

ISO RS485 Modbus

Seamless digital communication

Modbus

IP65 Water Proof

UV-stabilized

Unleash Powerful Signal
Penetration

UG65 offers an impressive capability for long-range communication, allowing seamless connectivity over distances of up to 2 km in urban areas.

UV

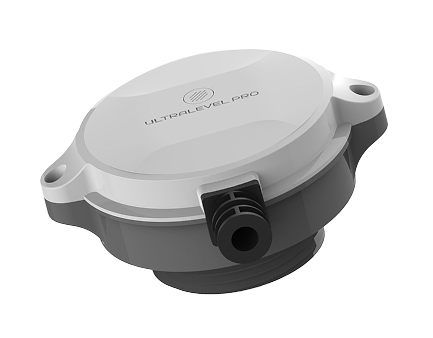

Waterproof radar sensor designed for reliable outdoor and industrial tank monitoring
Machine

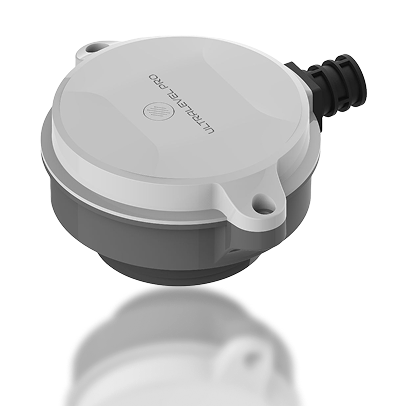

Measurement Excellence

Connection curve

Reliable performance with superior accuracy and resolution.

feature-icon

Range: 20 mm to 20 meters

feature-icon

Resolution: 1 mm

feature-icon

Accuracy: < +/-0.5% FSR (150 mm to 20 meters)

feature-icon

Radar Beam Angle: 10.8 degrees

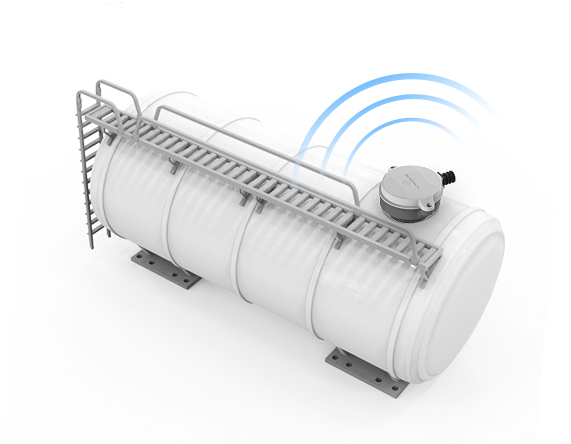

High accuracy radar sensor for precise and reliable fill level measurement

UltraLevel Pro is your fail-safe in unforgiving
environments.

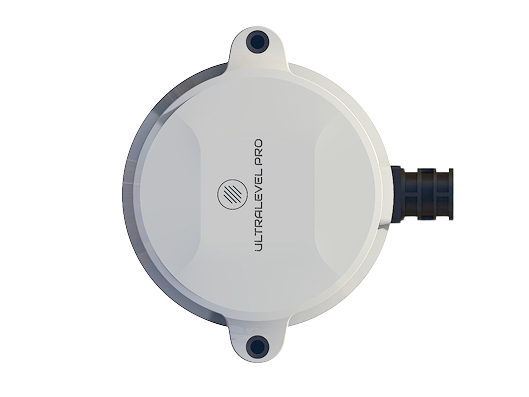

Temperature-resistant radar sensor for reliable tank level monitoring in extreme conditions
Hot+85 C capability
Operates in -20 CCold

Benefits of UltraLevel Pro Radar Level Sensor

Accurate, wireless, and maintenance-free level monitoring

benefit-icon

Non-Contact Accuracy

60GHz Radar level sensor delivers precise, continuous measurement without contact.

benefit-icon

Wireless Control

BLE 5.2 makes it a true wireless radar level transmitter—configure and monitor remotely.

benefit-icon

Durable Radar Sensor

IP65 Waterproof Radar Level Transmitter for Reliable Industrial Use

benefit-icon

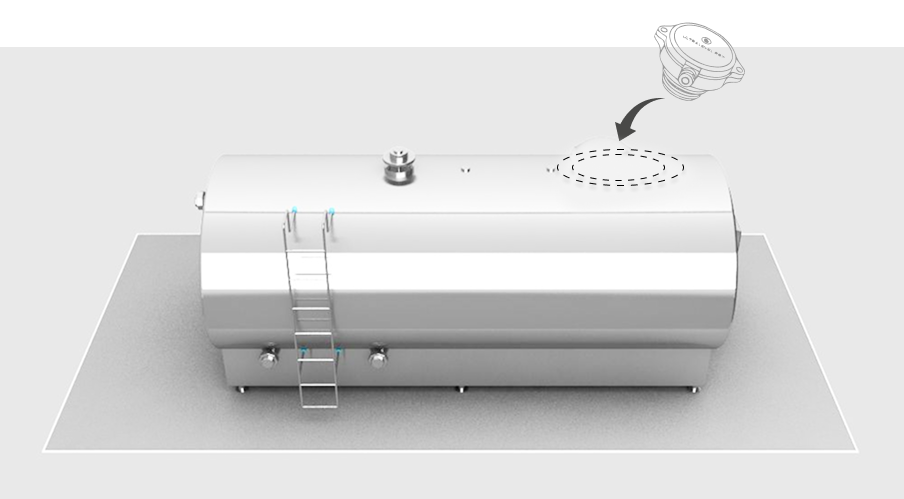

Easy Installation

Compact form factor + 1.25” BSP = a plug and play radar level sensor.

benefit-icon

Smart Integration

RS485, 0-4V for seamless automation and process control.

benefit-icon

Reliable Range & Precision

20 mm–20 m range with ±0.5% FSR accuracy and 1 mm precision.

Radar vs. Ultrasonic Level Sensors

Why Our Radar Sensor - UltraLevel Pro Leads

Cost

Cost-Effective

Delivers superior radar sensor efficiency compared to ultrasonic sensors, at a similar price point.

UltraSonic

Better Accuracy

Radar sensors deliver highly precise and stable readings across varying tank conditions, outperforming ultrasonic sensors.

UltraSonic

Rugged Durability

IP65 Waterproof Radar Sensor resistant to dust, fumes and vapors and outperforms ultrasonic sensors.

ultrasonic

Fast Response Time

Our radar sensors deliver real-time level detection with minimal lag; ultrasonic sensors often have slower response rates.

Radar Sensor
ultrasonic

Advanced Radar Penetration

60 GHz frequency provides highly precise level detection, delivering superior performance compared to ultrasonic sensors.

Product Specifications

Comprehensive details for performance, reliability, and integration.

Ultralevel Pro

Ultralevel Pro

Delivering Reliable Precision for Every Industrial Measurement

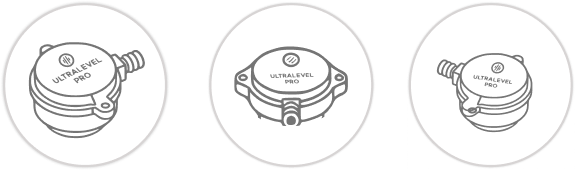

Radar Specification Image

Radar Specifications

  • Measurement Range: 20mm to <20 meters
  • Radar Frequency: 60 GHz
  • Radar Beam Angle: 10.8°
  • Resolution: 1mm
  • Accuracy: 0.5% FSR 150mm to 20 meters
  • Update Rate: 1 secs configurable
  • Repeatability: ±2 mm

Power and Durability

  • Operating Voltage: 9–20 V DC
  • Operating Temperature: -20°C to 85°C
  • Humidity Range: 45% to 95%
  • Housing Material: UV-stabilized
  • Protection Class: IP65 (Dust & Water Resistant)
  • Weight: 150g
  • Dimensions: 110×88×32 mm

Wireless & Wired Connectivity

  • Bluetooth BLE LR 5.2 | Tx Power up to +8dbm
  • ISO RS485 / 0–4V Output for wired integration
  • Switch Relay Outputs – Configurable for Low-Level & High-Level Alerts

Looking for a Radar Sensor Built for Harsh Environments?

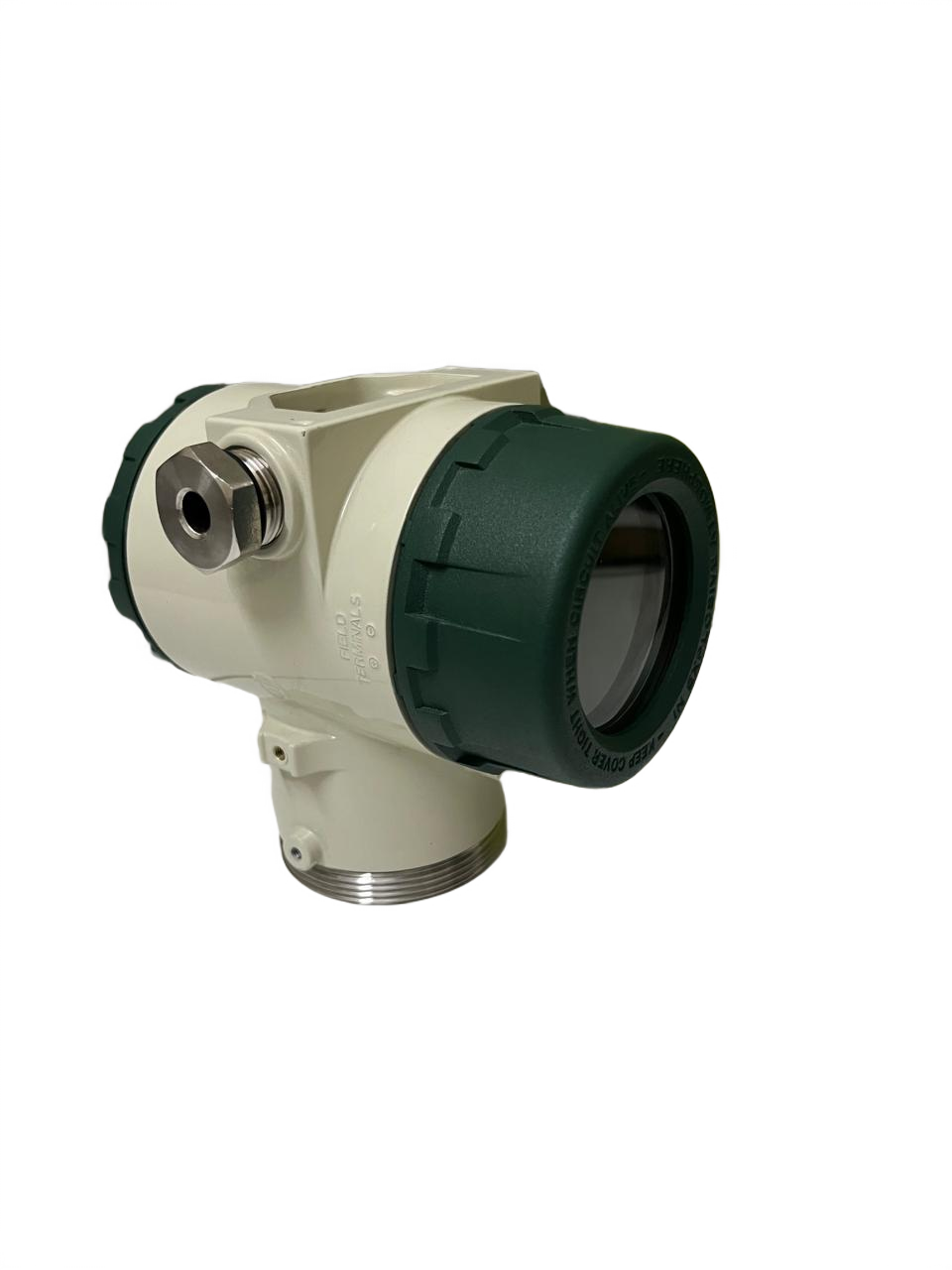

Advanced radar sensor for accurate and reliable tank fill level measurement
Vector
Icon

Integrated OLED Screen – 0.96” display for real-time tank visibility.

Icon

Smart Connectivity – BLE, LoRaWAN, NB-IoT & CAT-M1 support.

Icon

Robust Ex Aluminum body – IP66/IP68 dustproof and waterproof.

Icon

Dual Monitoring Modes – Local display plus remote control.

Use Cases

Generator Day Tanks
Use Case

Generator Day Tanks

Overhead water tanks
Use Case

Overhead water tanks

Automated production
Use Case

Automated production

Smart silos
Use Case

Smart silos

Underground Sumps
Use Case

Underground Sumps

Diesel Tank Monitoring
Use Case

Diesel Tank Monitoring

Tell Us About

Business Requirements

Select Your Country
+91
Enter Your Business Type

FAQ

What type of sensor is UltraLevel Pro?

UltraLevel Pro is a V-Band 60GHz radar level sensor that provides continuous, non-contact level measurement for both liquids and solids, ensuring high accuracy and reliable performance.

Can it handle harsh industrial environments?

Yes. UltraLevel Pro is IP68-rated, flameproof, and weatherproof, making it suitable for extreme and hazardous industrial environments.

What is the measurement range of this radar liquid level sensor?

This radar liquid level sensor measures levels from 20 mm up to 20 meters with ±0.5% FSR accuracy and 1 mm resolution, delivering precise and dependable level measurements.

How easy is installation for this compact radar level sensor?

UltraLevel Pro is designed for hassle-free installation with 1.25” BSP thread, flange, and customizable mounting options, making it suitable for both indoor and outdoor tank installations.

Can UltraLevel Pro be calibrated like other radar level sensors?

Absolutely. Calibration is simple and can be performed via the app or interface, ensuring accurate and consistent radar level measurement across different tank types.

Does UltraLevel Pro Radar Level Sensor support long-life battery?

Yes. UltraLevel Pro is a wireless, low-power radar level sensor that supports long-life battery operation, enabling continuous performance even without direct power supply.

How do UltraLevel Pro and Pro 2.0 radar level sensors differ?

UltraLevel Pro supports BLE 5.2 and RS485 for local monitoring, while UltraLevel Pro 2.0 adds LoRaWAN Class A Node, NB-IoT, and CAT-M1 connectivity for seamless cloud-based remote tank monitoring.
