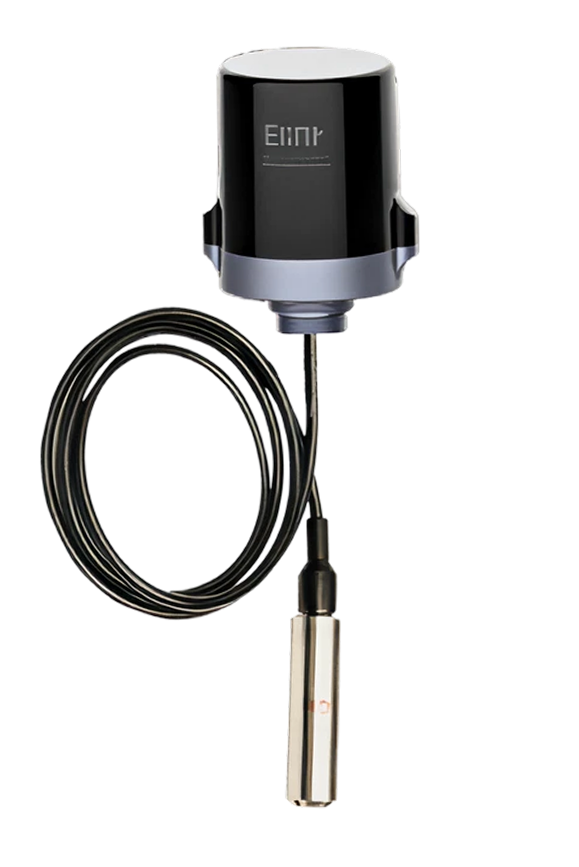

HydroSense Pro - Next-Gen Wireless Level Sensor for Smart Industrial Monitoring
- 10+ Years Battery Life (19Ah)*
- High Accuracy ±0.5% FSR
- Rugged IP65/IP68 Protection
- Wide Temp Range (-20°C to +85°C)
- LoRaWAN Extended Wireless Range (Up to 15 km) LOS
- Compact & Easy 1" BSP Mounting
- Broad Fluid Compatibility (Water, Diesel & Oil)
- Global IoT Connectivity (LoRaWAN® / Cat-M1, NB-IoT)
HydroSense Pro - Next-Gen Wireless Level Sensor for Smart Industrial Monitoring
- 10+ Years Battery Life (19Ah)*
- High Accuracy ±0.5% FSR
- Rugged IP65/IP68 Protection
- Wide Temp Range (-20°C to +85°C)
- LoRaWAN Extended Wireless Range (Up to 15 km) LOS
- Compact & Easy 1" BSP Mounting
- Broad Fluid Compatibility (Water, Diesel & Oil)
- Global IoT Connectivity (LoRaWAN® / Cat-M1, NB-IoT)
HydroSense Pro - Next-Gen Wireless Level Sensor for Smart Industrial Monitoring
- 10+ Years Battery Life (19Ah)*
- High Accuracy ±0.5% FSR
- Rugged IP65/IP68 Protection
- Wide Temp Range (-20°C to +85°C)
- LoRaWAN Extended Wireless Range (Up to 15 km) LOS
- Compact & Easy 1" BSP Mounting
- Broad Fluid Compatibility (Water, Diesel & Oil)
- Global IoT Connectivity (LoRaWAN® / Cat-M1, NB-IoT)
Wireless & Secured Data Transmission
Reliable connectivity for wireless pressure level sensors in industrial IoT.
.png "Icon")
.png "Icon")
.png "Icons")
Multi-Network Support – LoRaWAN®, Cat-M1 & NB-IoT enable
flexible deployment of pressure transducers
.png "Icon")
Secure Data Flow – Encrypted transmission ensures accurate
and secure monitoring from gauge level sensors.
Wireless & Secured Data Transmission
Reliable connectivity for industrial IoT sensors
Multi-Network Support – LoRaWAN®, Cat-M1 & NB-IoT for flexible deployment.
Secure Data Flow – Encrypted transmission ensures accurate & secure monitoring.
Wireless & Secured Data Transmission
Reliable IoT connectivity & secure data flow
Multi-Network Support – LoRaWAN®, Cat-M1 & NB-IoT enabled deployment.
Secure Data Flow – Encrypted transmission for accurate monitoring.

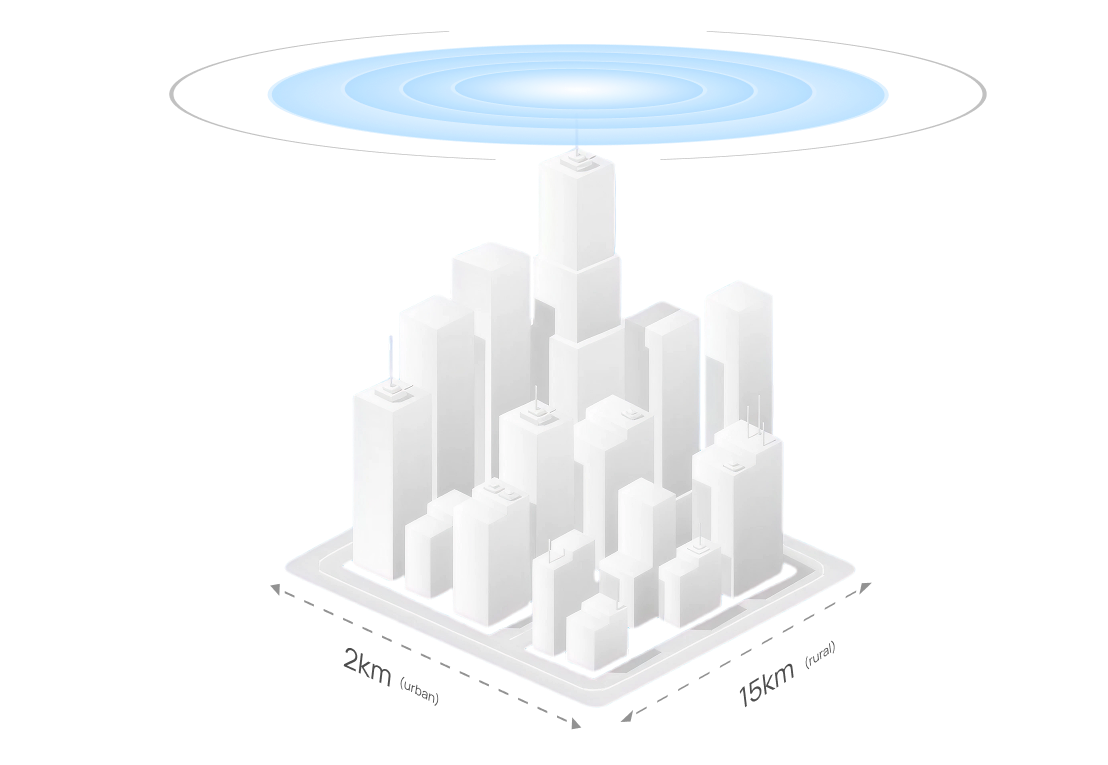

Ultra-Long-Range LoRaWAN Wireless Level Sensor
.png "icon")
Extended Range: 2 km (urban) / 15 km (rural) for reliable pressure sensor monitoring.
.png "icon")
Universal Compatibility: Works with all LoRaWAN® digital pressure level sensors.
.png "icon")
Reliable Performance: Strong signal for water, hydraulic & industrial level sensors.
.png "icon")
Future-Ready: Scalable for large IoT level monitoring systems.
Ultra-Long-Range LoRaWAN Wireless Level Sensor
Extended Range: 2 km (urban) / 15 km (rural) for reliable pressure sensor monitoring.
Universal Compatibility: Works with all LoRaWAN® digital pressure level sensors.
Reliable Performance: Strong signal for water, hydraulic & industrial level sensors.
Future-Ready: Scalable for large IoT level monitoring systems.
Ultra-Long-Range LoRaWAN
Wireless Level Sensor
Extended Range: 2 km (urban) / 15 km (rural) for reliable pressure sensor monitoring.
Universal Compatibility: Works with all LoRaWAN® digital pressure level sensors.
Reliable Performance: Strong signal for water, hydraulic & industrial level sensors.
Future-Ready: Scalable for large IoT level monitoring systems.

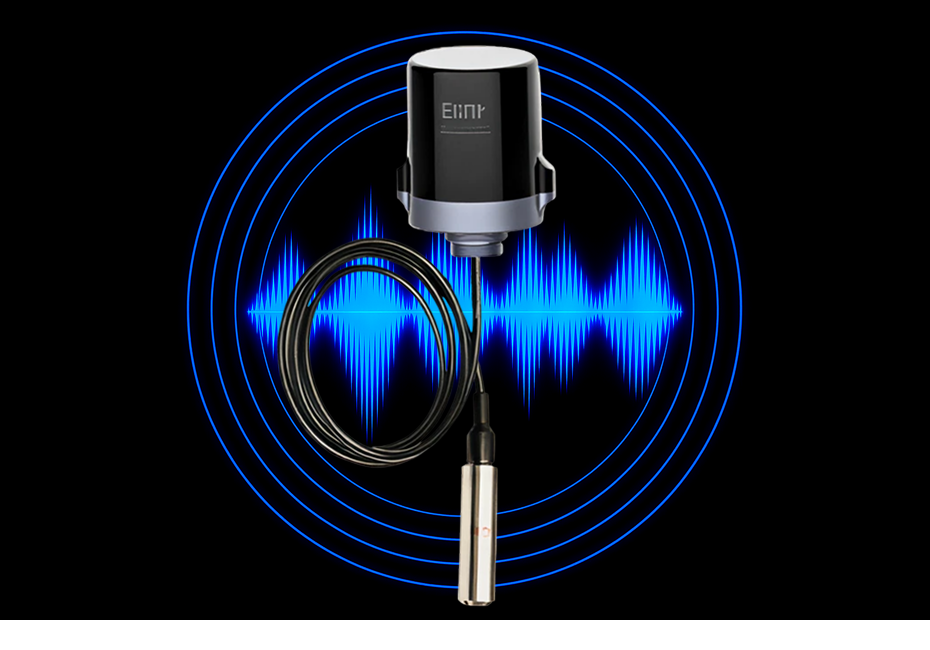

NB-IoT & Cat-M1 Connectivity
Low-power, wide-area cellular technologies optimized for IoT level sensor applications.
.png "Icons"){kind=small}
Multi-Band Support – Covers B1/B2/B3/B4/B5/B8/B12/B13/B17/ B18/B19/B20/B25/B26/B28/B66 for truly global reach.
.png "Icons"){kind=small}
Reliable Coverage – Strong indoor penetration and extended rural connectivity.
.png "Icons"){kind=small}
Power-Efficient – Ideal for long-life battery-powered IoT devices.
Secure Industrial Communication
Ensuring safe and efficient connectivity across industrial IoT networks.
- MQTTS – Encrypted, lightweight IoT messaging
- TCP/IPs – Reliable, stable data transmission
- SFTP – Secure file transfer & remote updates
NB-IoT & Cat-M1 Connectivity
Low-power, wide-area cellular technologies optimized for IoT.
Multi-Band Support – Covers B1/B2/B3/B4/B5/B8/B12/B13/B17/ B18/B19/B20/B25/B26/B28/B66 for truly global reach.
Reliable Coverage – Strong indoor penetration and extended rural connectivity.
Power-Efficient – Ideal for long-life battery-powered IoT devices.
Secure Industrial Communication
- MQTTS – Encrypted, lightweight IoT messaging
- TCP/IPs – Reliable, stable data transmission
- SFTP – Secure file transfer & remote updates
NB-IoT & Cat-M1 Connectivity
Multi-Band Support – Covers B1/B2/B3/B4/B5/B8/B12/B13/B17/ B18/B19/B20/B25/B26/B28/B66 for truly global reach.
Reliable Coverage – Strong indoor penetration and extended rural connectivity.
Power-Efficient – Ideal for long-life battery-powered IoT devices.
Secure Communication
- MQTTS – Encrypted, lightweight IoT messaging
- TCP/IPs – Reliable, stable data transmission
- SFTP – Secure file transfer & remote updates
Wireless BLE 5.2 Configuration
Quick device provisioning and configuration via Bluetooth
On-site diagnostics & monitoring without physical wiring
Fast, simple commissioning for field deployments
Highest Measurement Accuracy
Smart wireless level transducer designed for digital pressure monitoring in mission-critical applications.
- Total Accuracy:±0.5% FSR
- Resolution:1 mm
- Pressure Resolution:16-bit ADC with 10 PPM
Reliable Level Monitoring
Designed for accuracy, reliability, and industrial resilience.
Pressure Range
0.05 to 10 bar for precise monitoring.
Measurement Range
100 mm to 100000 mm
Overload Protection
Withstands up to 200%
Burst Pressure
Safety assured with 300% tolerance

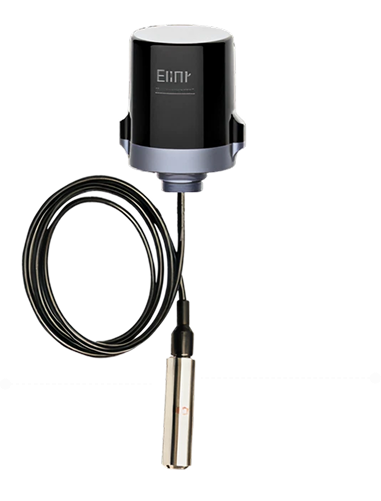

Temperature Drift Stability
Reliable performance with minimal measurement deviation across wide temperature ranges.
Zero Drift – 0.03% FS/°C
(Max: 0.1% FS/°C)
Full-Scale Drift – 0.002% FS/°C
(Max: 0.1% FS/°C)
Adaptable Pressure Options
Whether tank level, line pressure, or sealed environments, the sensor delivers accurate readings in gauge, absolute, or relative modes.
Rugged Build for Industrial Environments
Durable housing with IP-rated protection ensures reliable wireless level monitoring in harsh industrial environments.
.svg "Spec Icon"){kind=small}
Stainless Steel Diaphragm with Viton/NBR O-Ring for chemical & fluid resistance
.svg "Spec Icon"){kind=small}
IP65 / IP68 – Dust & Waterproof
.svg "Spec Icon"){kind=small}
UV-Stabilized PC-ABS
Broad Fluid Compatibility
Engineered for precise monitoring in industrial applications.
Water & Liquids - Accurate monitoring for pipelines, tanks, and smart systems.
Diesel & Fuels - Reliable performance for fuel storage & hydraulic systems.
Chemicals – Corrosion-resistant design for chemical level monitoring.
Smart IoT Cloud for Level Monitoring
Seamless management of wireless level transducers.
Real-Time Dashboard – Instant visibility of all Level data.
Secure IoT Connectivity – LoRaWAN / Cat-M1 & NB-IoT ready.
Automated Alerts – Reliable monitoring for water, fuel, and industrial systems.
Key Benefits of Wireless Pressure Level Monitoring Sensor
Seamless IoT Connectivity
LoRaWAN®, NB-IoT & Cat-M1 ensure reliable global coverage for pressure and level sensors.
.svg "Fit-and-Forget Operation"){kind=small}
Fit-and-Forget Operation
10+ years* battery life with one-time installation for worry-free wireless monitoring.
.svg "High Accuracy & Stability"){kind=small}
High Accuracy & Stability
±0.5% FSR precision with minimal temperature drift for consistent industrial performance.
.svg "Rugged Industrial Design"){kind=small}
Rugged Industrial Design
IP65/IP68 protection with stainless steel diaphragm for harsh environments.
.svg "Scalable Deployment"){kind=small}
Scalable Deployment
Easy replicability and plug-and-play setup for water, fuel, oil and hydraulic monitoring systems.
.svg "Smart Cloud Insights"){kind=small}
Smart Cloud Insights
Real-time dashboards, automated alerts, and secure data logging for proactive decision-making.
Product Specifications
Comprehensive details for performance, reliability, and integration.
MEASUREMENT PERFORMANCE
- Pressure Range: 0.05 – 10 bar
- Measurement Range: 100 mm – 100,000 mm
- Resolution: 1 mm / 16-bit ADC
- Accuracy: ±0.5% FSR
- Overload Protection: 200%
- Burst Pressure: 300%
- Temperature Drift (Zero): 0.03% FS/°C (Max: 0.1%)
- Temperature Drift (Full-Scale): 0.002% FS/°C (Max: 0.1%)
- Repeatability Error: ≤0.1% FSR
- Long-Term Stability: ≤0.2% FSR per year
WIRELESS COMMUNICATION
- LoRaWAN®: Long-range (2 km urban / 15 km rural LOS)
- Cellular: Cat-M1 / NB-IoT with multi-band global coverage
- Bluetooth: BLE 5.2 for provisioning, diagnostics
- Transmission Interval: Configurable (15 minutes to 12 hours)
- SIM: Micro SIM / eSIM options
- Protocols Supported: MQTT(S), CoAP, UDP, TCP/IP, SFTP, FTP
POWER AND DURABILITY
- Battery: 19Ah Industrial-grade (10+ years life)
- Housing Material: UV-stabilized PC-ABS
- Protection Class: IP65 / IP68 (Dust & Waterproof)
OPERATING TEMPERATURE
- Operating Temperature: –20 °C to +85 °C
- Storage Temperature: –20 °C to +60 °C
- Humidity: 5% to 95% (non-condensing)
- Shock Resistance: 10 g (20–2000 Hz)
- Impact Resistance: 50 g (10 ms)
MECHANICAL
- Dimensions: 65 mm Ø × 97 mm (H) ±2 mm
- Mounting: Compact 1" BSP connection
- Weight: From 230 g
CLOUD
- Smart IoT Cloud Dashboard: Real-time monitoring, automated alerts, and secure data logging
- Alerts: Configurable SMS / App / Email notifications
Use Cases
Oil Storage Tanks
Flood level monitoring

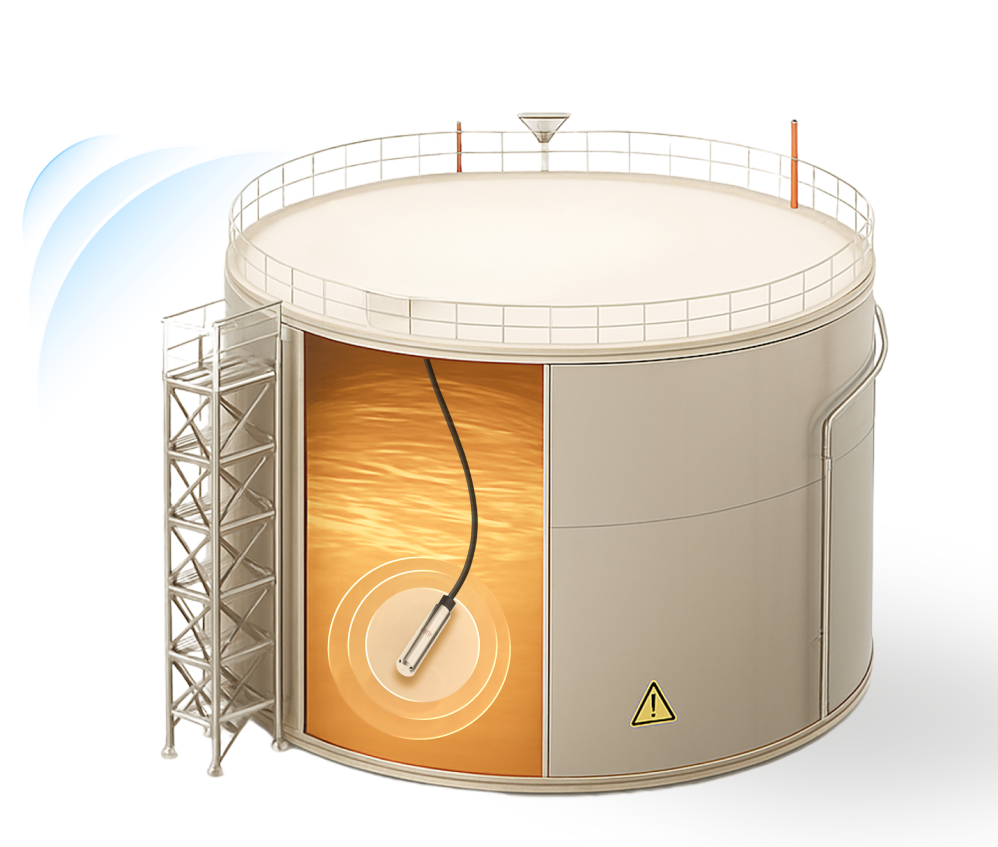

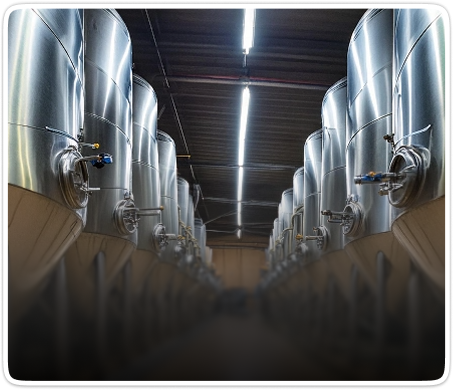

Industrial tanks

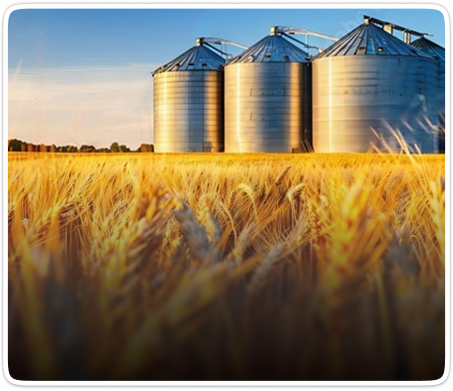

Smart silos

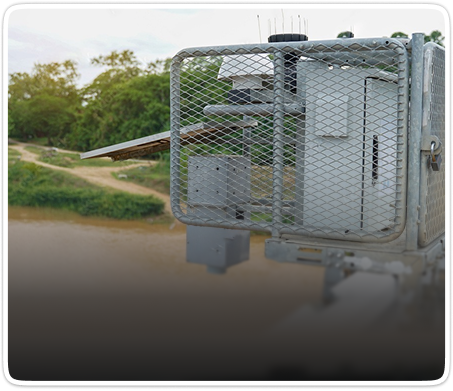

Water reservoir monitoring

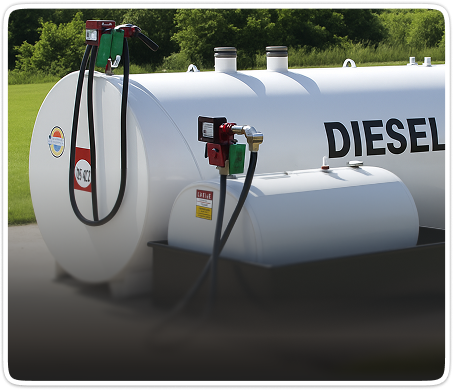

Diesel Storage Tanks
Tell Us About
Business Requirements
FAQ
A wireless pressure level sensor is an IoT-enabled device that measures liquid levels and pressure in tanks, pipelines, and hydraulic systems. It uses LoRaWAN®, NB-IoT, or Cat-M1 connectivity to transmit real-time data, enabling remote monitoring without wiring.
Our digital pressure level transducers deliver ±0.5% FSR accuracy with 16-bit ADC resolution. They offer excellent stability with low temperature drift for precise monitoring of water, fuel, hydraulic pressure, and industrial liquids.
They are widely used in industrial pressure monitoring, smart water systems, diesel storage, oil tanks, and hydraulic equipment. Typical applications include pipeline monitoring, pump control, water distribution, and remote reservoir level measurement.
Our wireless pressure transducers and level transmitters feature a 19Ah industrial-grade battery, supporting over 10 years of operation depending on transmission frequency—ideal for fit-and-forget deployments.
Wireless pressure sensors use encrypted MQTTS, TCP/IP, and FTP/SFTP protocols to ensure secure IoT communication. This guarantees safe and reliable cloud monitoring for water, hydraulic, and industrial pressure data.
Wireless level sensors eliminate cabling, reduce installation costs, and provide long-range connectivity up to 15 km with LoRaWAN®. They scale easily for industrial deployments and integrate seamlessly with cloud dashboards for real-time alerts and analytics.
Yes. These wireless pressure level sensors are compatible with water, diesel, oil, and a wide range of chemicals, making them suitable for multi-fluid monitoring in tanks, pipelines, and hydraulic systems.
