Ultrasense Pro: Battery-Powered Ultrasonic Level Sensor for Industrial Tanks

IconsIcons
•Non-Contact Ultrasonic Level Measurement
•NB-IoT / CAT-M1 Connectivity
•Accurate from 1 to 10 m Range
•100% Battery-Powered Operation (up to 3 Years)
•Compact Rugged IP65 Design for Tanks
•Multi-Liquid Support (Water, Oil, Wastewater)
•Programmable Full / Empty Alerts
•Plug-and-Play Installation with Cloud Dashboard
Ultrasonic tank level sensor delivering non-contact, high-accuracy liquid level measurement for industrial tanks.Curve IconsCurve Image

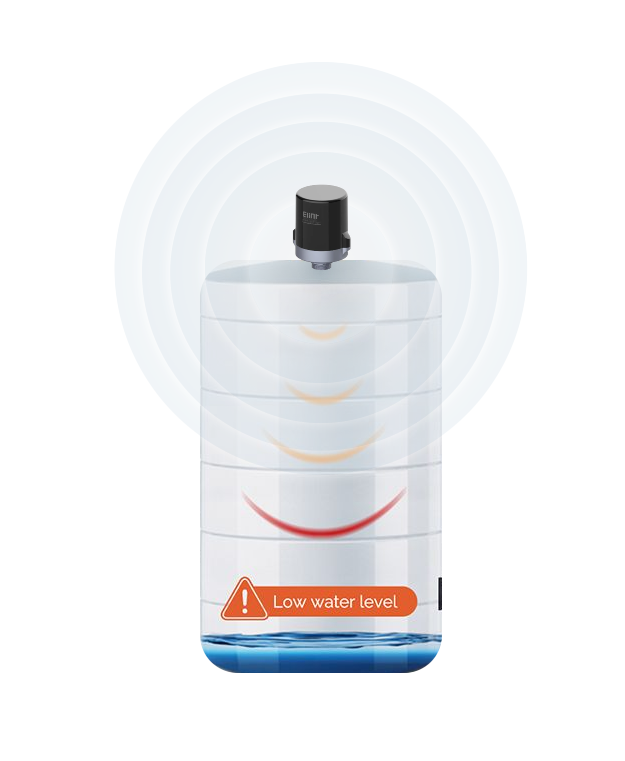

Ultrasonic Level Measurement

Precision non-contact sensing for industrial liquid tanks.

Ultrasonic level sensor operating principle using sound waves to measure liquid level inside storage tanks.
Feature icon

Measurement Range Upto : 1–10 m

Feature icon

Measurement accuracy : 1%

Feature icon

Resolution: 1 mm / 1 cm configurable

Feature icon

Measurement Interval: 1 min – 24 hrs adjustable

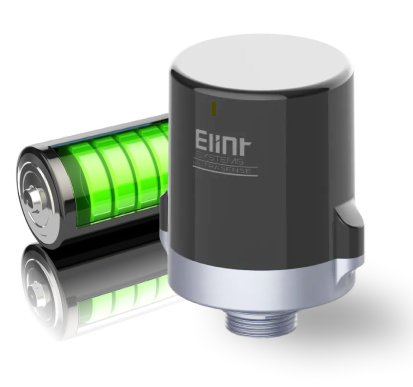

Long-Lasting Power Performance

100% battery powered tank level sensor for reliable, long-term monitoring

UL Logo

Power Options: Lithium-Thionyl Chloride (Li-SOCl₂) 3.6 V | 17.0 Ah

UL Logo

Battery Life: Up to 3 years at 20 °C

Battery-powered level sensor for wireless remote tank fill level monitoring in industrial and utility applications.
Background

Integrated Antenna System

Optimized for strong signal performance and reliable data transmission.

right wave Industrial tank level sensor providing accurate liquid level measurement for chemical, water, and fuel storage tanks.right waves

Internal 2.3 dBi Omnidirectional Antenna — Ensures stable connectivity and extended range for the tank level transmitter.

Background pattern

Flexible SIM Connectivity

Designed for global connectivity and smart industrial level sensor management.

eSIM illustrationBlack dot
eSIM

eSIM

Embedded SIM for secure, remote provisioning andmaintenance-free operation

Micro SIM

Standard removable SIM for easyreplacement and setup
Connecting arrow
Industrial level sensor with IoT connectivity enabling real time tank fill level monitoring and cloud integration.

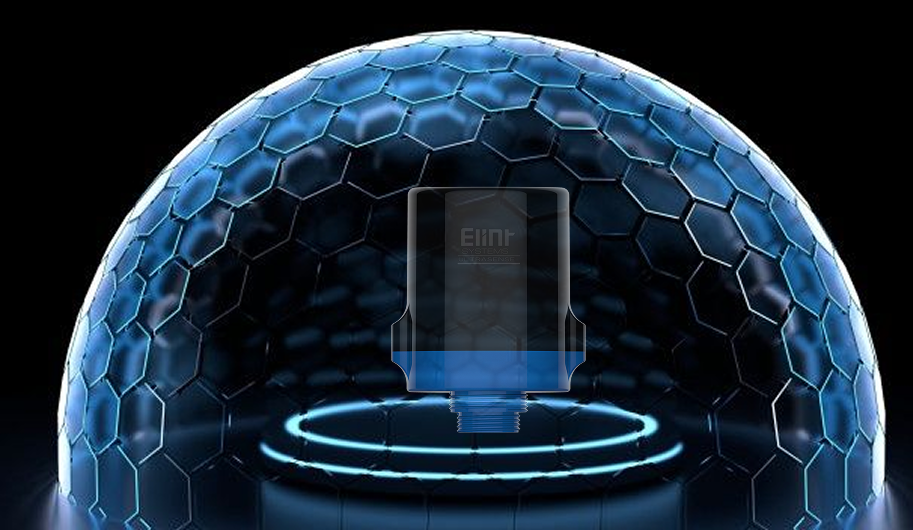

Rugged Industrial Enclosure

Built to withstand harsh environments and ensure long-term durability

Futuristic pedestal
Feature 2

Housing Material: UV-stabilized PC-ABS for superior outdoor protection.

Feature 2

Protection Class: IP65-rated enclosure for dust and water resistance.

Smart Tank Level Notifications

Stay informed with intelligent alerts for optimized tank management.

Tank monitoring
icon

Programmable Alarms – Customize level thresholds for precise control.

icon

Full Alert – Instantly notifies when the tank reaches maximum capacity.

icon

Empty Alert – Triggers timely refills and prevents operational downtime.

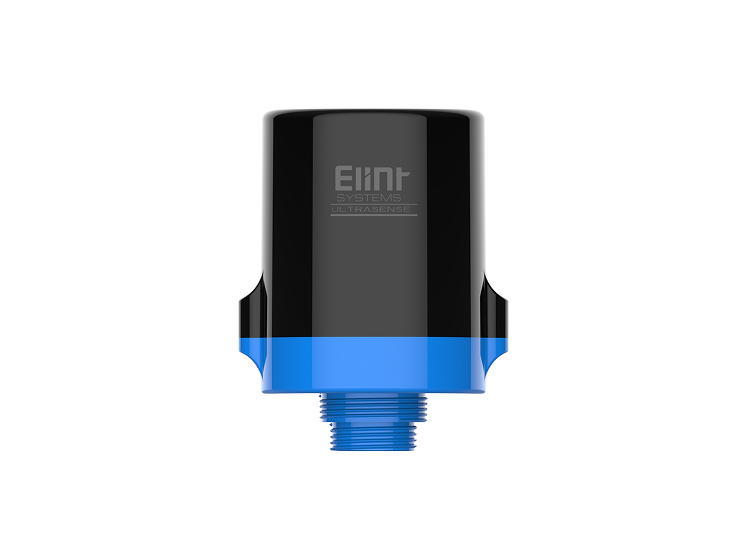

Wide Operating Temperature Range

Engineered for reliable tank level measurement in extreme industrial conditions.

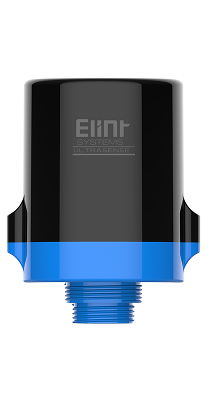

Industrial tank level sensor providing accurate liquid level measurement for chemical, water, and fuel storage tanks.
Thermometer

Operates in –20°C – Built for extreme cold environments with reliable performance

Hot weather

+60°C capability – Withstands high temperatures for consistent operation

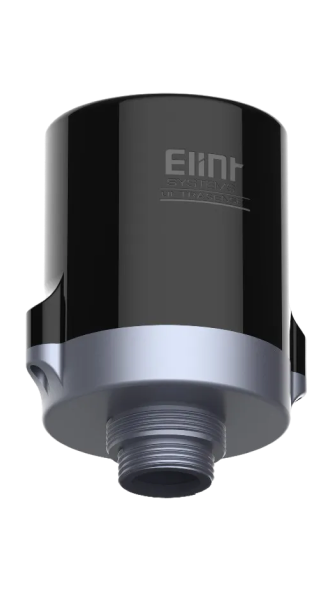

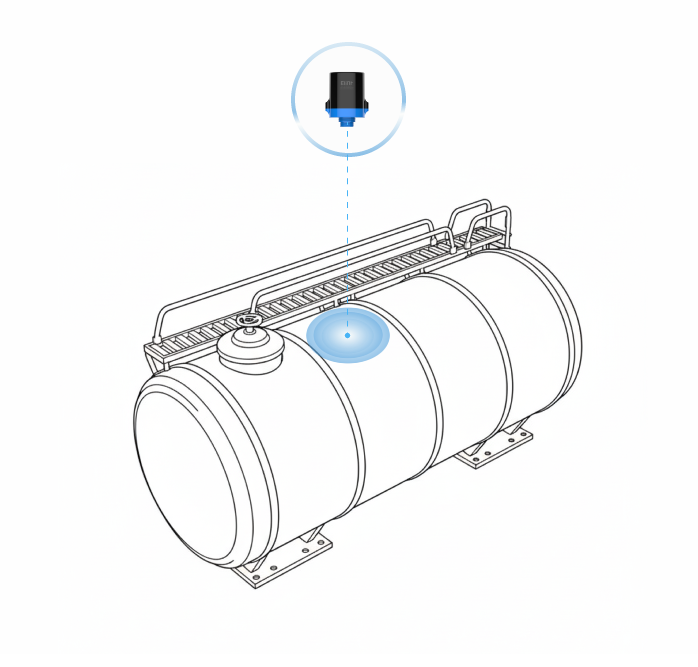

Compact Plug-and-Play Level Sensor

Designed for quick installation and accurate tank level measurement.

Ultrasonic sensor
icon

Mounting Options: Fits directly into ¾” or 1” BSP; customizable on request

icon

Weight: 279 g (9.9 oz) – lightweight yet durable construction

icon

Dimensions: 65 mm Ø × 97 mm (H) ±2 mm

Benefits of Ultrasense Pro

benefit-icon

Smart Deployment

Instantly operational with no complex setup - eliminate manual measurement and achieve rapid ROI through true plug and play level sensing.

benefit-icon

Real-Time Visibility

Gain 24/7 access to precise tank data with high-resolution ultrasonic sensing (1 mm accuracy), enabling predictive refills and efficient asset management.

benefit-icon

Route Optimization

Intelligent data-driven routing reduces fuel, travel time, and operational costs while ensuring just-in-time deliveries and collections.

benefit-icon

Operational Efficiency

Prevent overfilling, fuel theft, and unnecessary service trips — ensuring every liter and every mile contributes to your bottom line.

benefit-icon

Seamless Integration

A unified IoT ecosystem combining hardware, cloud software, and analytics dashboards for seamless asset tracking and advanced reporting..

benefit-icon

Industrial Durability

Built with IP65 waterproof protection and next-generation software architecture — engineered to perform in the toughest industrial conditions.

Product Specifications

Comprehensive details for performance, reliability, and integration.

Industrial tank level sensor providing accurate liquid level measurement for chemical, water, and fuel storage tanks.

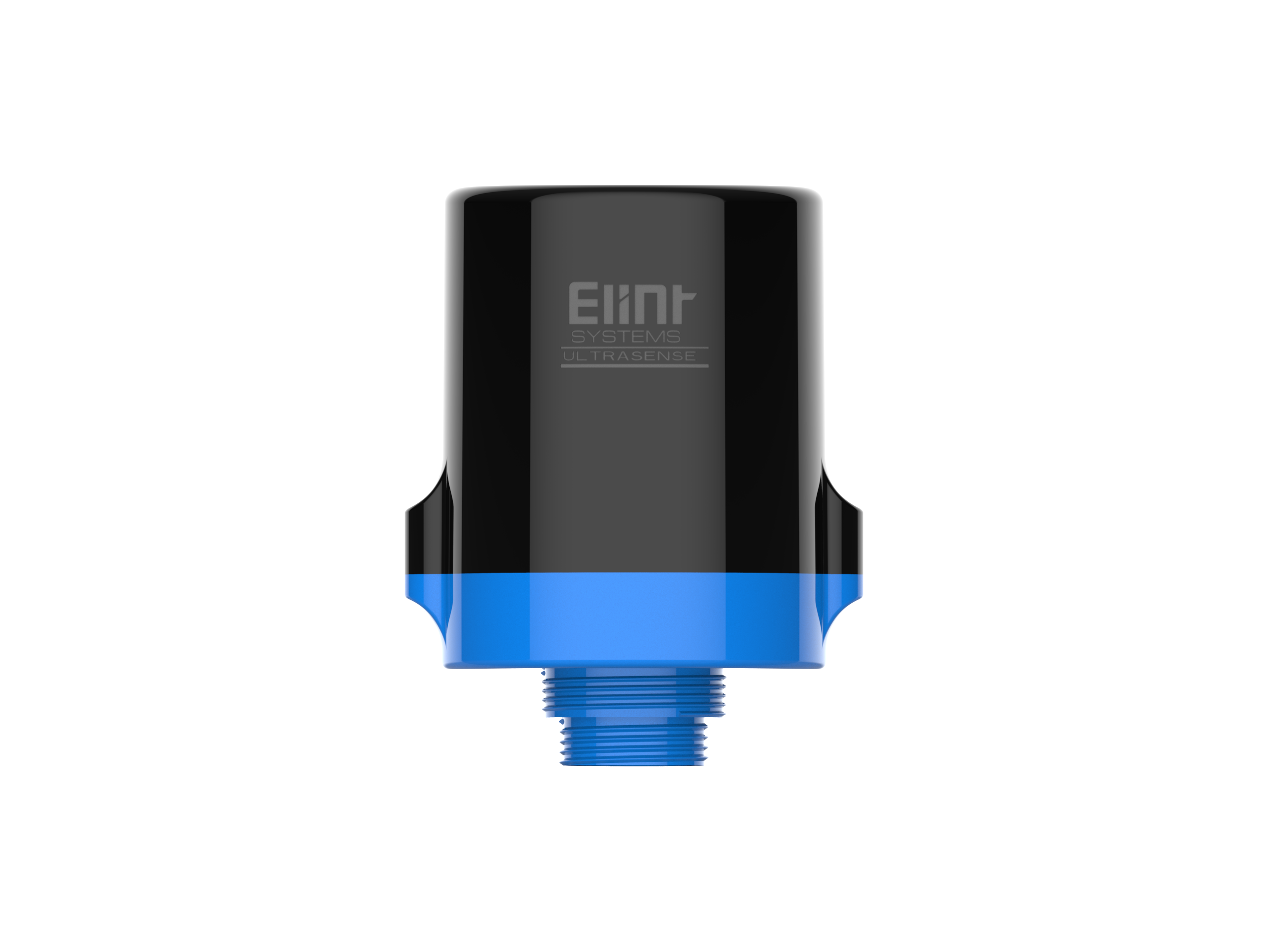

UltraSense Pro

Precision Non-Contact NB-IoT Level Sensor for Smart Liquid Monitoring

Description of image

Measurement Specifications

  • Sensing Technology: Ultrasonic
  • Measurement Range: 1 m to 10 m (configurable)
  • Measurement Resolution: 1 mm / 1 cm
  • Measurement Accuracy: ± 1%
  • Beam Angle: 11° maximum deviation from central axis
  • Measurement Interval: Configurable > 15 minutes – < 12 hrs
  • Mounting Options: Direct fit to ¾" / 1" BSP threads

Wireless Connectivity

  • Communication: Secured NB-IoT / CAT-M1
  • Supported Bands: B1 /B2 /B3 /B4 /B5 /B8 /B12 /B13 /B17 /B18 /B19 /B20 /B25 /B26*/B28/B66
  • SIM Options: Micro SIM or eSIM supported
  • Antenna: Internal 2.3 dBi omnidirectional
  • Transmission Interval: Configurable (15 minutes to 1 data)
  • Data Security: End-to-end encryption with secure key management

Power and Durability

  • Power Source: Lithium-Thionyl Chloride (Li-SOCl₂) 3.6 V 17 Ah battery
  • Battery Life: Up to 3 years (at 20 °C)
  • Enclosure: UV-stabilized PC ABS industrial plastic housing
  • Protection Class: IP65 – Water and dust resistant
  • Operating Temperature: -20 °C to +60 °C
  • Humidity Range: 15% – 95% RH
  • Dimensions: Ø 65 mm × H 97 mm (± 2 mm)
  • Weight: 279 g (9.9 oz)

Performance and Integration

  • Cloud Ready: Compatible with Elint IoT Cloud for real-time monitoring and analytics
  • Smart Alerts: Full / Empty alerts with instant data push
  • Integration: API-ready for third-party dashboard or ERP connectivity
  • Setup: Plug-and-play installation
  • Durability: Designed for long-term field performance in harsh environments

Use Cases

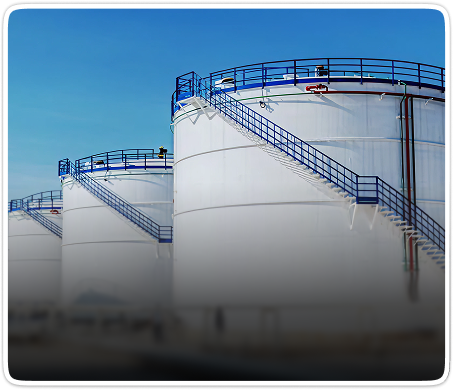

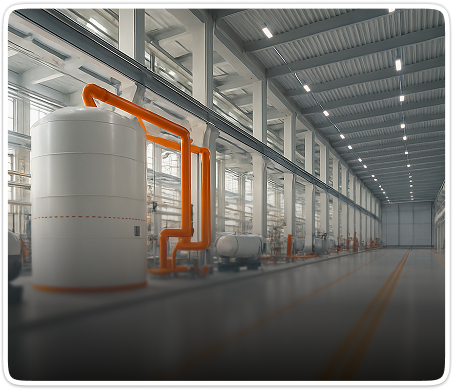

Industrial Storage Tank
Use Case

Industrial Storage Tank

Water Level monitoring
Use Case

Water Level monitoring

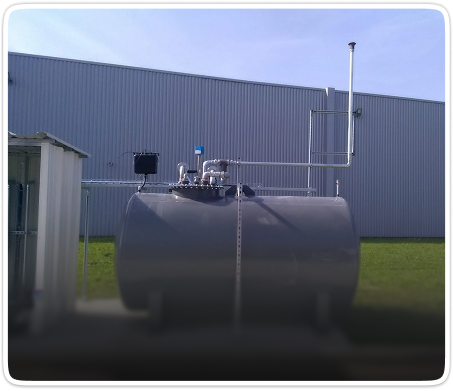

Fuel tank monitoring
Use Case

Fuel tank monitoring

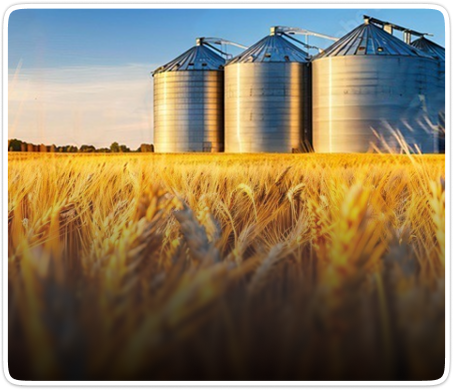

Smart silos
Use Case

Smart silos

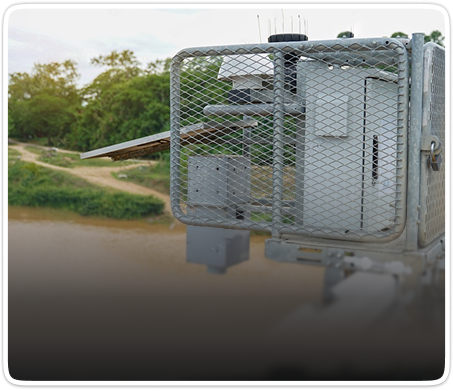

Water reservoir monitoring
Use Case

Water reservoir monitoring

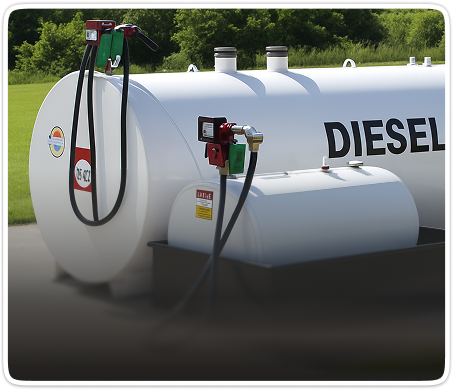

Diesel Tank Monitoring
Use Case

Diesel Tank Monitoring

Tell Us About

Business Requirements

Select Your Country
+91
Enter Your Business Type

FAQ

How can I monitor tank levels remotely?

Ultrasense Pro, a wireless tank level sensor, allows real-time monitoring via cloud dashboards, letting you check water, oil, or fuel levels from anywhere.

Can an ultrasonic sensor measure multiple liquids?

Yes, Ultrasense Pro supports water, oil, fuel, and chemicals with non-contact ultrasonic sensing for safe and accurate measurements.

How long does a battery-powered tank sensor last?

The battery in Ultrasense Pro can last up to 3 years, reducing maintenance and preventing operational downtime.

Will Ultrasense Pro work in harsh industrial environments?

Yes, it features IP65-rated rugged housing and can operate in temperatures from -20°C to 60°C.

Can I integrate Ultrasense Pro with existing IoT systems?

Absolutely. It supports cloud connectivity and APIs, making it easy to integrate into your IoT ecosystem.

How accurate is Ultrasense Pro for tank measurement?

It offers precision non-contact measurement with 1 mm to 1 cm resolution, ideal for predictive refills and smart tank management.

Is Ultrasense Pro suitable for IBC containers?

Yes, its compact, plug-and-play design fits small and intermediate bulk containers, enabling efficient inventory tracking.
