Global Leader in Industrial Radar Level Sensing

Meet UltraLevel Pro 2.0: The Radar Level Sensor Built for Harsh Industrial Realities!

Radar LevelIconsIconsIcons
Onboard OLED Live Display
60 GHz Radar Sensing
Battery & Mains Powered
BLE 5.2 , LoRaWAN, NB-IoT & CAT-M1.
Rugged IP68 + Flameproof Build
Measurement Range: 20 mm – 20 m
< ±0.5% FSR Accuracy
RS485 / 0-4V / 4-20ma HART*
BannerDot Arrow

20 mm to 20 m — Precision Level Sensing for Diverse Tank Geometries

Built with flameproof IP68 protection, 1-second updates, and 60 GHz radar precision—delivering reliable measurements for tanks of every size and shape.

High-accuracy radar sensor for precise oil, gas, and chemical tank level measurement.

Connect Smarter. Calibrate Wirelessly

Bluetooth-enabled radar level sensor for wireless tank monitoring and industrial IoT integration.
BLE Icon

BLE 5.2 Up to 20 m

Iphone

Versatile Output Suite for Industrial Integration.

Perfect for intelligent tank monitoring, alarms, and process control.

Advanced tank monitoring radar sensor for accurate level measurement in industrial tanks.

UltraLevel Pro 2.0 – Advanced IoT Connectivity

Future-Ready Industrial Communication for Every Deployment

LoRaWAN Logo

LoRaWAN® Connectivity

Left Icons

LoRaWAN® v1.0.3, Class A – Fully compliant for industrial IoT applications.

Left Icons

Long-Range Signals – Up to 2 km in urban areas and 15 km in open LOS.

Left Icons

Ultra-Low Power – Extended battery life for remote tank monitoring.

Left Icons

BLE 5.2 Setup – Simple, wireless configuration and calibration.

LTE-M NB-IoT Logo

CAT-M1 / NB-IoT Connectivity

Global Cellular Ready – Multi-band LTE Cat NB1 for worldwide IoT coverage.

Right Icons

Secure Communication – Carrier-grade encryption for safe data exchange.

Right Icons

Energy Efficient – Optimized for low-power, always-on monitoring.

Right Icons

Versatile Protocols – MQTTs, TCP & FTP support for reliable industrial integration.

Right Icons
IoT-connected radar sensor for cloud-based tank level monitoring in extreme industrial conditions.
Explosion-proof radar level sensor for safe measurement in hazardous oil and gas environments.

Flameproof Enclosure. Weatherproof Endurance

IP68 explosion-proof build resists water, dust, and hazardous atmospheres— built to thrive where others fail.

Your Frontline Dashboard— Built Right In.

No guesswork, no lag. The OLED display gives you tank-level truth the moment you need it.

IoT-enabled radar sensor for real-time cloud-based tank monitoring and data logging.

Flameproof radar sensor engineered for flawless year-round operation across extreme climate conditions.

Device Center
Hot temperature+85°C capability
Operates in –20°CCold temperature

Precision Radar Level Sensing

Reliable, non-contact measurement for any tank size or shape.

feature-icon

Range: 20 mm to 20 meters

feature-icon

Resolution: 1 mm

feature-icon

Accuracy: < ±0.5% FSR (150 mm to 20 meters)

feature-icon

Radar Beam Angle: 10.8°

Advanced tank monitoring radar sensor for oil and gas tank level measurement in industrial sites.

Versatile Radar Sensor Mounting

Engineered for seamless installation across industrial environments.

FeatureRow

2” BSP Thread – universal fit

FeatureRow

Compact Form Factor – 66.8 mm Ø × 42.5 mm (H)

FeatureRow

Industry-Ready for Oil, Gas & Chemical Tanks

Plug-and-play radar level sensor for quick and hassle-free industrial installation.

Benefits of UltraLevel Pro 2.0 Radar Level Sensor

Accurate, wireless, and maintenance-free level monitoring

benefit-icon

Contactless Precision

Advanced 60 GHz radar delivers continuous, accurate level measurement without physical contact.

benefit-icon

Multi-Network Connectivity

LoRaWAN®, Cat-M1, NB-IoT & BLE 5.2 for seamless remote setup and monitoring.

benefit-icon

Industrial-Grade Durability

Flameproof IP68 radar transmitter built to perform in harsh and hazardous environments.

benefit-icon

Easy Installation

Compact 1.25″ BSP design enables fast, universal mounting with minimal effort.

benefit-icon

Seamless Automation Integration

RS485, 0-4 V / 4-20 mA, and HART® outputs for smooth connection to process control systems.

benefit-icon

Wide Range & High Accuracy

Measures 20 mm to 20 m with ±0.5% FSR accuracy and 1 mm resolution.

Radar vs. Ultrasonic Level Sensors

Why UltraLevel Pro 2.0 Industrial IoT Radar Sensors Outperform

Cost-Effective

Cost-Effective

Industrial IoT radar level sensors offer greater efficiency and reliability than ultrasonic sensors, at a similar cost for tank and IBC monitoring.

Superior Accuracy

Superior Accuracy

60 GHz radar ensures precise, stable tank level measurements, outperforming ultrasonic systems.

Industrial Strength

Industrial Strength

Built with IP68 flameproof housing, our radar sensors thrive in harsh industrial environments where ultrasonic sensors often fail.

Instant Response

Instant Response

UltraLevel Pro 2.0 delivers real-time liquid level data with minimal delay, unlike slower ultrasonic systems.

Radar Sensor
Deep Signal Performance

Deep Signal Performance

High-frequency radar delivers strong penetration and consistent accuracy for tanks and IBCs.

ATEX-Certified for Hazardous Zones

UltraLevel Pro 2.0 delivers reliable, fully compliant operation in explosive, volatile, and high-risk industrial environments.

ATEX Certified

Product Specifications

Comprehensive details for performance, reliability, and integration.

Advanced tank monitoring radar sensor for accurate level measurement in industrial tanks.

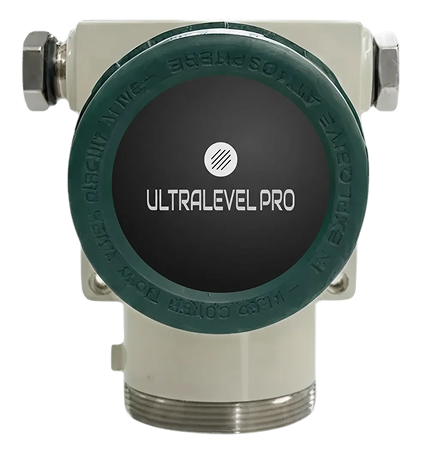

Ultralevel Pro 2.0

Engineered for Absolute Accuracy in Tank, Liquid & Fuel Monitoring

Description of image

Radar Specifications

  • Measurement Range: 20mm to 20 meters
  • Radar Frequency: 60 GHz
  • Radar Beam Angle: 10.8°
  • Resolution: 1mm
  • Accuracy: 0.5% FSR 150mm to 20 meters
  • Update Rate: 1 secs configurable
  • Repeatability: ±2 mm

Power and Durability

  • Operating Voltage: 9–20 V DC
  • Operating Temperature: -20°C to 85°C
  • Humidity Range: 45% to 95%
  • Housing Material: UV-stabilized
  • Protection Class: IP68 Flameproof
  • Weight: 150g
  • Dimensions: 110× 88× 32 mm
  • Display : OLED 0.96” onboard for live tank insights

Wireless & Wired Connectivity

  • Bluetooth BLE LR 5.2 |Tx Power up to +8dbm
  • RS485 / 0–4V Output , 4-20ma HART* for wired integration
  • LoRaWAN IN868MHz | Tx Power up to +20dbm
  • LoraWAN support Class A / P-to-P communication
  • LTE Cat M1 / NB-IoT (optional)
  • Range: Up to 2KM LOS
  • Data Frequency: 1-60 minutes configurable

Looking for an Affordable Radar
Level Sensor?

UltraLevel Pro radar sensor integrated with IoT cloud for real-time tank monitoring and analytics.
  • sensor
  • sensor

    Radar Level Sensor with 0–4V Output & BLE
    – Quick and simple wireless setup.

  • sensor

    Extended Range & Precision – 20 mm to
    20 m with ±0.5% FSR and 1 mm resolution.

  • sensor

    Durable Housing – IP65 UV-resistant build
    for dependable operation.

  • sensor

    Relay Integration – Built-in high/low relay
    outputs for alerts and automation.

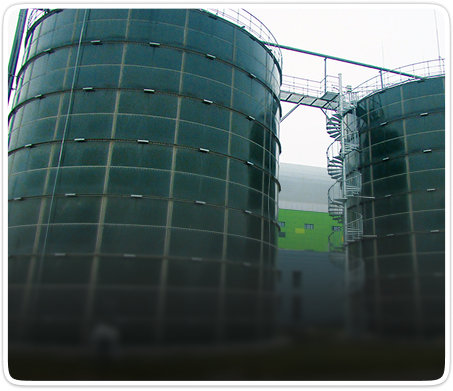

Use Cases

Overhead Water Tanks
Use Case

Overhead Water Tanks

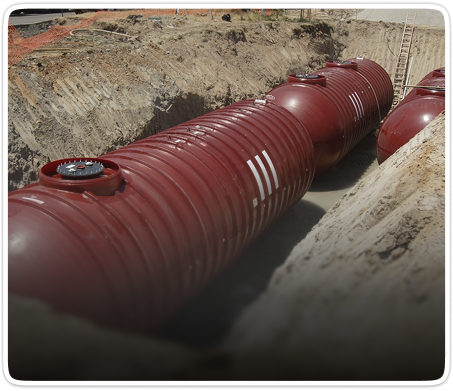

Underground Sumps
Use Case

Underground Sumps

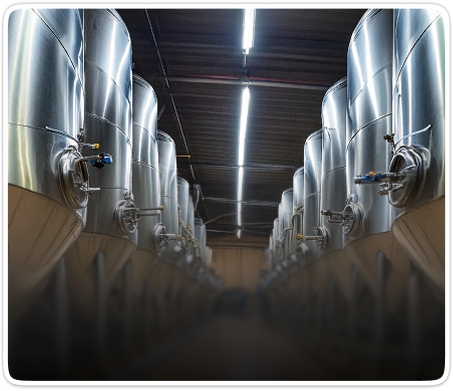

Automated production
Use Case

Automated production

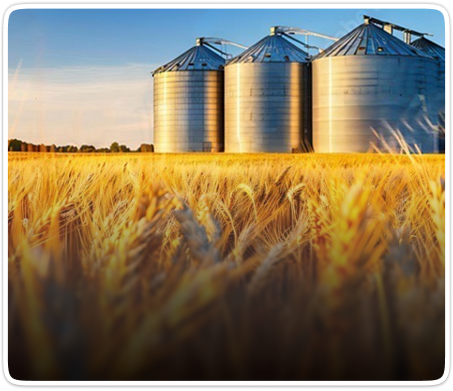

Smart silos
Use Case

Smart silos

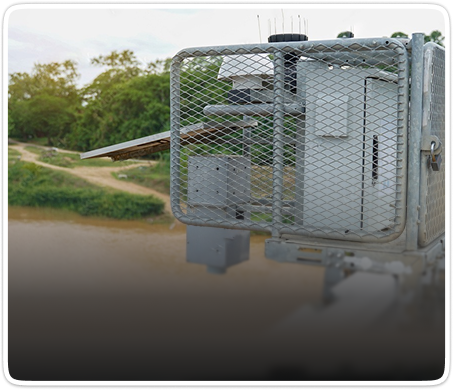

Water reservoir monitoring
Use Case

Water reservoir monitoring

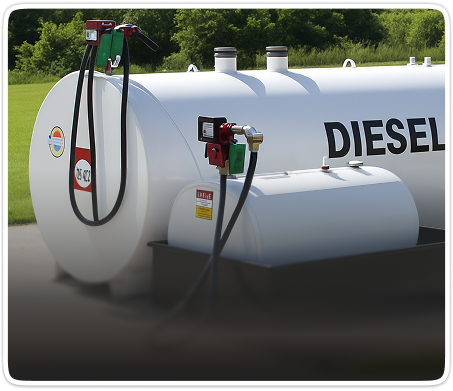

Diesel Tank Monitoring
Use Case

Diesel Tank Monitoring

Tell Us About

Business Requirements

Select Your Country
+91
Enter Your Business Type

FAQ

What is UltraLevel Pro 2.0 Radar Sensor?

UltraLevel Pro 2.0 is an Industrial IoT radar level sensor designed for precise tank and IBC monitoring with advanced connectivity for real-time level measurement.

How accurate is the radar liquid level transmitter?

The radar liquid level transmitter delivers ±0.5% FSR accuracy with 1 mm resolution, ensuring reliable and precise real-time liquid level monitoring.

Can the radar sensor work in harsh industrial environments?

Yes. UltraLevel Pro 2.0 features an IP68-rated, flameproof enclosure that is fully dustproof and rugged, making it suitable for extreme and hazardous industrial environments.

Does this radar level sensor support IoT connectivity?

Yes. It supports BLE, LoRaWAN, NB-IoT, and CAT-M1 connectivity for real-time tank monitoring, along with secure communication protocols such as MQTTS, FTP, and TCP.

Does the sensor support flexible mounting?

Yes. UltraLevel Pro 2.0 features a 2” BSP thread, compact design (66.8 mm Ø × 42.5 mm), and a rugged build, making it suitable for both indoor and outdoor tank and IBC installations.

Where can UltraLevel Pro 2.0 radar level transmitter be used?

It is ideal for applications across oil & gas, chemical plants, fuel storage, life sciences, water treatment, logistics, and IBC tank monitoring.

Does UltraLevel Pro 2.0 have a display for live readings?

Yes. UltraLevel Pro 2.0 includes a 0.96” OLED display that provides instant, live tank level readings directly on the device.
