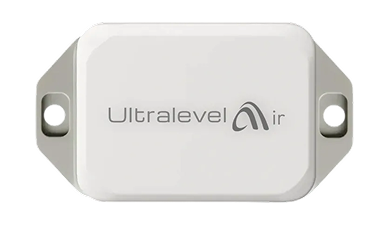

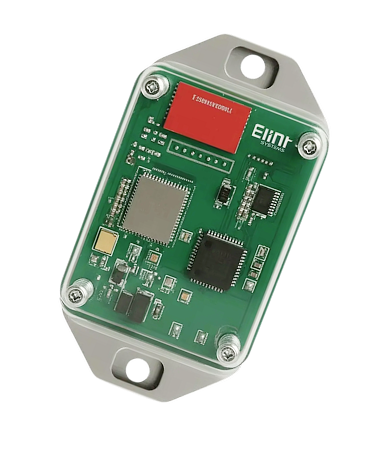

UltraLevel Air – Smart Wireless Fill Level Monitoring Sensor

RadarIconsIconsIcons
• Smart Radar and Laser Fill Level Monitoring
• Compact Design, Easy to Install Anywhere
• Prevent Overflow and Improve Efficiency
• 17Ah Long-Life Battery for Extended Use
• Instant Tamper and Movement Alerts
• Secure Communication with Encrypted Protocols
• Multi-Network IoT Connectivity
• Built-In SIM and eSIM for Reliable Connectivity
SensorThree Icons
Industrial fill level monitoring sensor providing accurate liquid and bulk material level measurement with remote access.

Advanced Sensing Technology

Powered by advanced Radar and 3D Laser Sensing, UltraLevel Air delivers precise fill level monitoring with fast, reliable, and consistent detection across all environments

High-Precision Measurement Performance

Delivers exceptional accuracy and reliability for precise fill level detection

Measurement Icon

Measuring Range :Up to 10 m Configurable

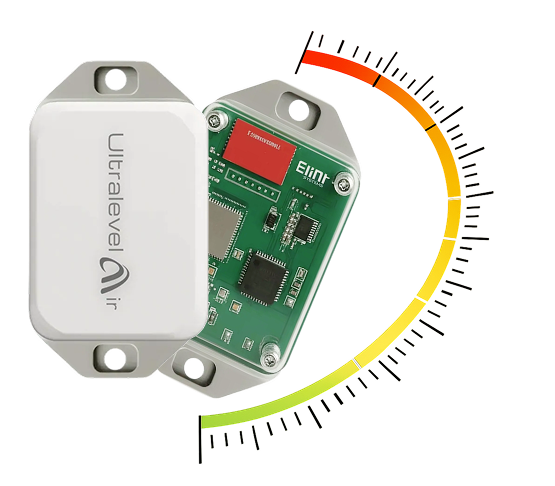

measurement device

Extended Battery Efficiency

Powers continuous, high-performance wireless level detection with reliable inbuilt energy.

Battery-powered fill level sensor for remote tank and container monitoring with long-life wireless IoT connectivity.

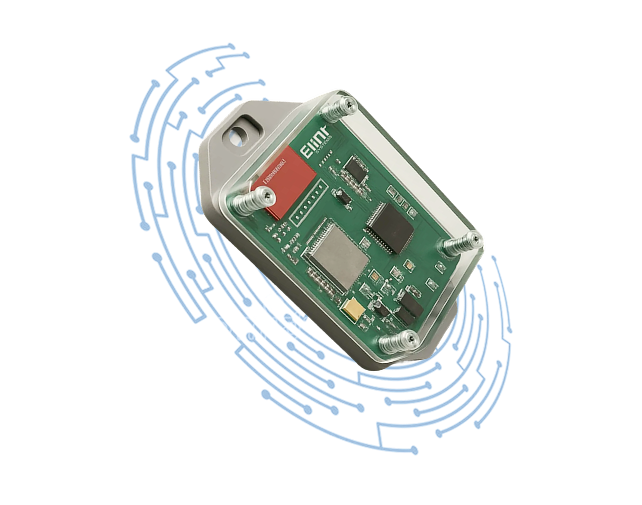

Secure Connectivity Architecture

Empowers the Ultralevel Air wireless fill level sensor with safe, high-speed, and reliable cloud communication

MQTTS

MQTTS

Provides secure file transfer for configuration and updates

SFTP

SFTP

Ensures encrypted data exchange for Photon devices via SFTP protocol.

HTTPS

HTTPS

Guarantees authenticated and protected data transmission

Reliable IoT Connectivity

Delivering stable and high-performance communication for the remote fill level monitoring.

CAT-M Icon
CAT-M
High-speed, efficient cellular network for real-time monitoring.
Supported Bands
B1, B5, B8, B12, B13, B17, B20, B25, B26, B28, B65, B66, B85
NB-IoT Icon
NB-IoT
Reliable low-power connectivity for long-range data transmission.

Integrated Movement Sensor

Advanced sensing for proactive security and reliable performance

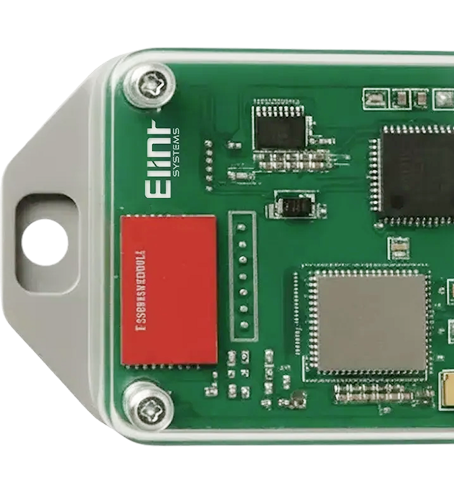

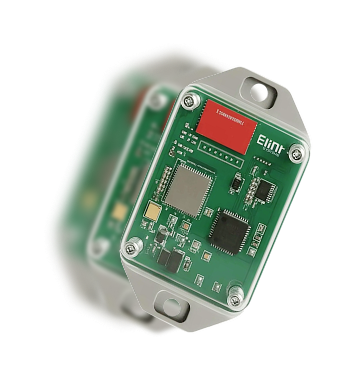

Device close-up
Movement Tracking icon

Movement Tracking

Unauthorized Handling icon

Unauthorized Handling

Theft Detection icon

Theft Detection

Smart BLE Configuration

UltraLevel Air smart fill level detection sensor enables Bluetooth Low Energy (BLE)–based configuration, allowing quick setup, calibration, and firmware updates without physical access.

Ensures effortless on-site management with secure, wireless configuration and minimal maintenance effort.

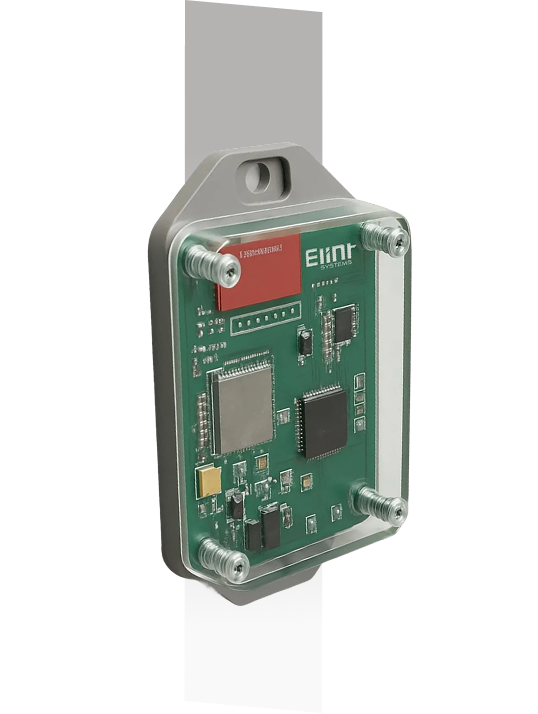

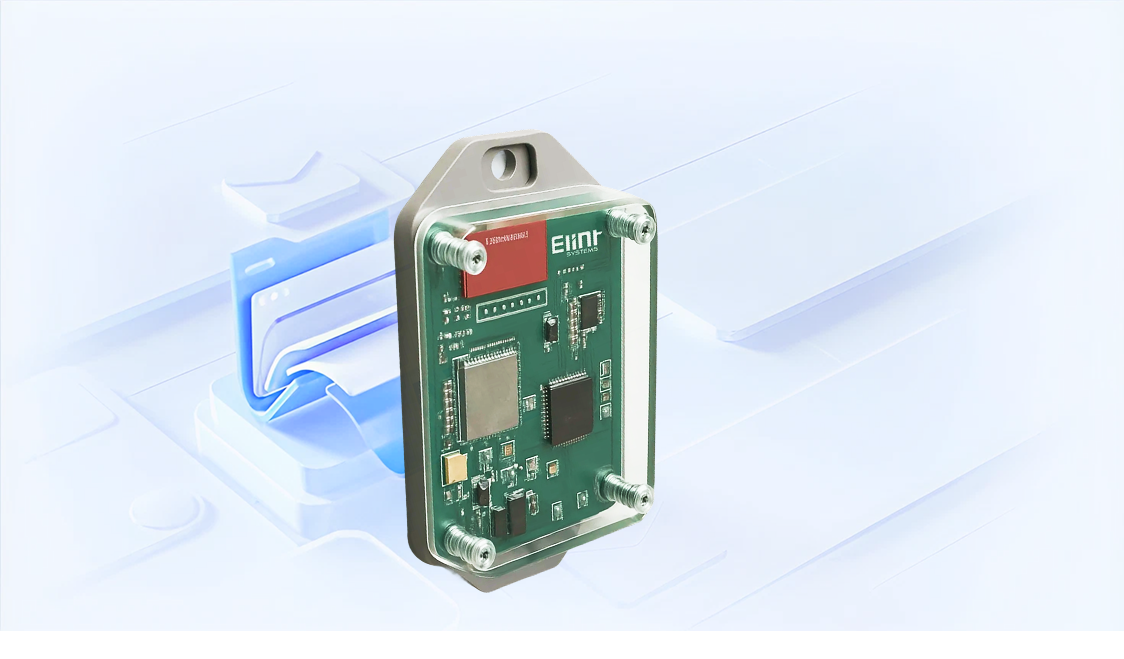

UltraLevel Air non-contact fill level monitoring system using radar technology for precise remote tank measurement.

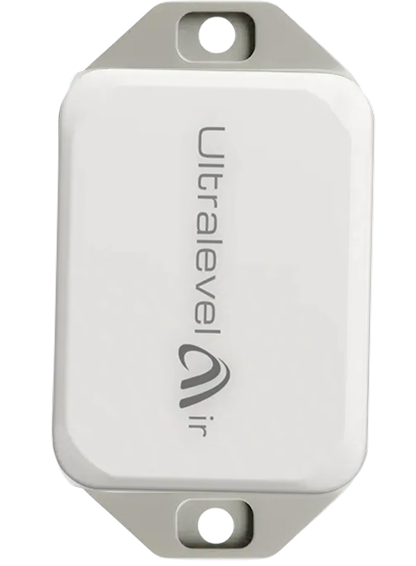

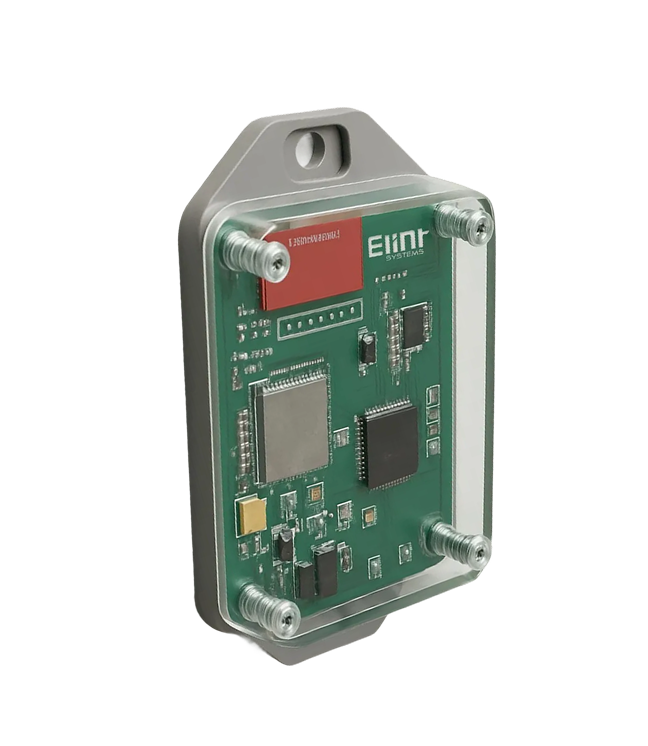

UltraLevel Air device

Data Logging & Backup Reliability

UltraLevel Air features flash memory for secure data logging, ensuring uninterrupted operation and reliable backup during network outages.

Memory icon
Memory Capacity:8 MB Flash Storage

Durable Weatherproof Enclosure

Built with robust IP65 plastic housing, UltraLevel Air ensures reliable performance and protection in demanding outdoor and industrial environments

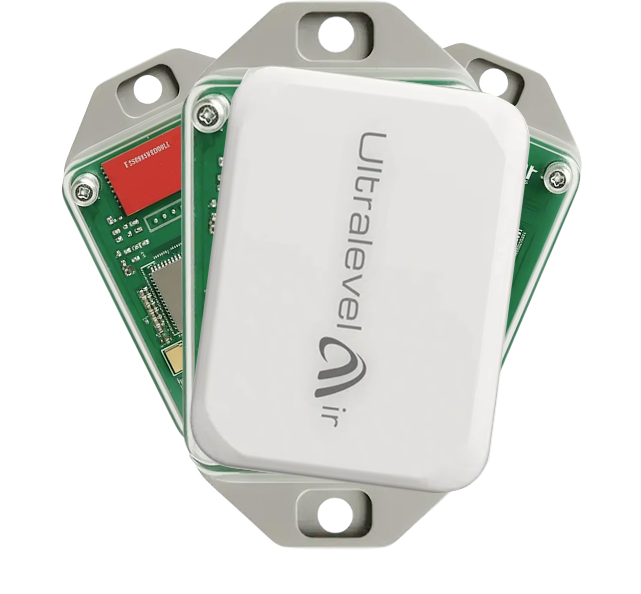

Weatherproof enclosure deviceDevice detail viewUltraLevel Air non-contact fill level monitoring system using radar technology for precise remote tank measurement.

Versatile SIM Integration

Ensures uninterrupted communication for the remote
fill level monitoring system across all networks.

eSIM illustrationBlack dot
eSIM

eSIM

Effortless remote provisioning with reliable global access

Plastic SIM

Stable cellular connectivity for consistent performance
Connecting arrow
Device with SIM

Wide Operating Temperature Range

Designed to operate reliably in diverse and challenging temperature conditions.

device
ColdOperates in -20°C
+70°C capabilityHot

Compact Plug & Play Installation

Simplifies setup for efficient and reliable fill level monitoring

Feature icon

Easy Mounting and Quick Setup

Ø

Dimensions (L × W × H): 118 × 88 × 32 mm

Feature icon

Suitable for Bins, Boxes, and Smart Waste Containers

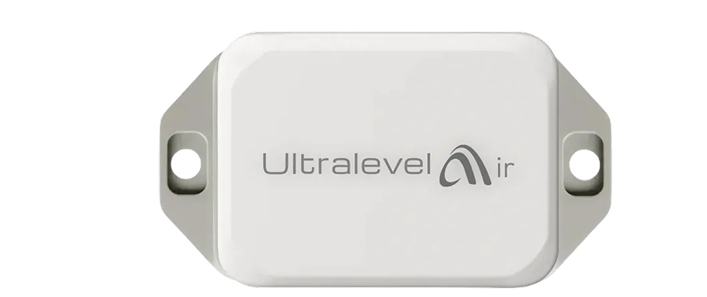

Product view

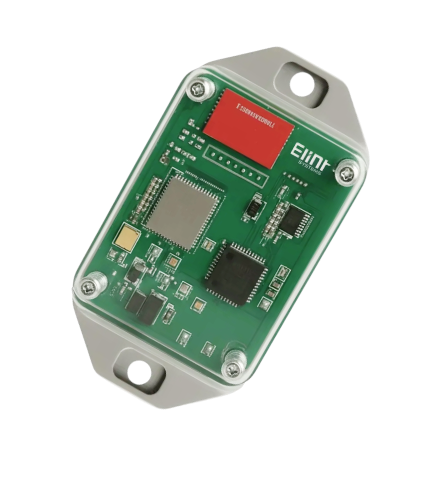

Whatsapp image

All-in-One Smart Fill Level Monitoring Sensor

UltraLevel Air delivers end-to-end intelligence - from precise fill level monitoring to cloud analytics and real-time operational insights

Fill Level Monitoring icon

Fill Level Monitoring

Real-time radar sensing for accurate capacity tracking

Tamper & Theft Detection icon

Tamper & Theft Detection

Integrated movement sensing for asset security

Cloud Analytics icon

Cloud Analytics

Actionable data visualization and performance insights

Configurable Alerts icon

Configurable Alerts

Custom notifications for proactive maintenance and response

Operational Efficiency icon

Operational Efficiency

Enhances waste collection efficiency with smart alerts and bin monitoring.

Route Optimization icon

Route Optimization

Enables data-driven scheduling for smarter, fuel-efficient collection routes.

Product Specifications

Comprehensive details for performance, reliability, and integration.

UltraLevel Air

UltraLevel Air

Precision sensing for smart box and bin level monitoring applications.

Sensing Specifications

  • Sensing Technology: Radar / Laser
  • Measurement Range: Up to 10 m (configurable)
  • Accuracy (Level Sensor): ±1%
  • Movement Sensor: Integrated – Theft & Unauthorized Movement Detection
  • Movement Sensor Accuracy: ±3%

Wireless Connectivity

  • Communication: Secured NB-IoT / CAT-M1
  • Supported LoRaWAN Bands: EU868 / IN865 / US915 / AS923 / AU915
  • Data Transmission Protocols: MQTTS / SFTP / HTTPS
  • Over-the-Air (OTA) Updates: Remote firmware & configuration updates supported
  • Periodic Data Transmission: Configurable (e.g., 4 readings/hour)
  • Sim Support: Plastic SIM & eSIM supported
  • Digital Input: Configurable for door open detection

Power and Durability

  • Battery Capacity: Inbuilt 17 Ah Li-SOCl₂
  • Data Logging: 8 MB Flash Memory (for network backup)
  • Operating Temperature: -20°C to +70°C
  • Enclosure: IP65, Industrial Plastic Housing
  • Dimensions (L×W×H): 118 × 88 × 32 mm
  • GPS: Optional

Performance and Integration

  • Cloud Ready: Compatible with Elint IoT Cloud for real-time analytics
  • Secure Data: End-to-end encryption with safe key management
  • Applications: Ideal for charity boxes, and smart bins

Use Cases

Smart Garbage Bins
Use Case

Smart Garbage Bins

Charity Donation Boxes
Use Case

Charity Donation Boxes

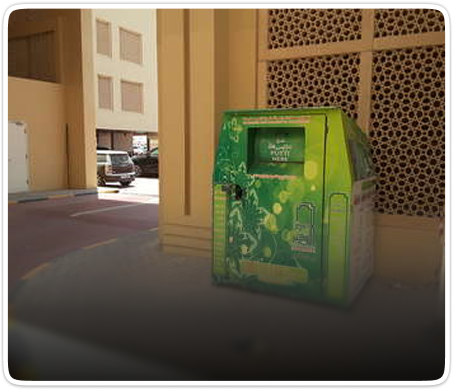

Clothing Donation Bins
Use Case

Clothing Donation Bins

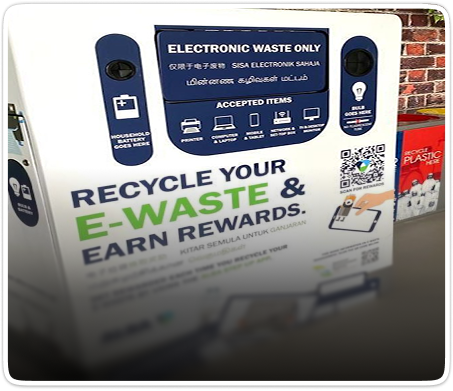

E-Waste Collection Bins
Use Case

E-Waste Collection Bins

Warehouse Scrap Bins
Use Case

Warehouse Scrap Bins

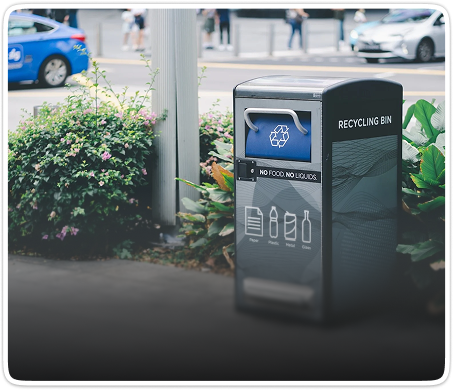

Recycling Containers
Use Case

Recycling Containers

Tell Us About

Business Requirements

Select Your Country
India flag+91
Enter Your Business Type

FAQ

What is UltraLevel Air smart fill level monitoring sensor?

UltraLevel Air is a wireless IoT fill level monitoring sensor designed for bins, boxes, and containers to track real-time fill levels, detect tampering, and optimize collection efficiency.

How does the radar and laser technology improve fill level detection accuracy?

The smart radar and 3D laser sensing in UltraLevel Air ensure high-precision fill level detection with ±1% accuracy, even in dust, moisture, or low-light environments.

Can UltraLevel Air be used as a remote fill level monitoring system?

Yes, UltraLevel Air operates as a real-time remote fill level monitoring system with NB-IoT, CAT-M1, and LoRaWAN connectivity for uninterrupted data transmission.

Does UltraLevel Air support plug and play fill level tracking?

Absolutely. UltraLevel Air is a compact plug and play fill level monitoring device, allowing easy installation on any bin, box, or container without wiring or calibration.

How does the movement sensor help in smart bin tamper detection?

Its integrated movement sensor detects theft, vibration, or unauthorized handling, providing instant tamper alerts for secure asset management.

What makes UltraLevel Air ideal for wireless IoT level monitoring?

With multi-network IoT support, encrypted communication (MQTTS, HTTPS, SFTP), and a 17Ah long-life battery, it ensures continuous, reliable wireless level monitoring.

Can UltraLevel Air store data during network outages?

Yes, the built-in 8MB flash memory securely logs fill level data, ensuring backup reliability and uninterrupted performance even during connectivity loss.
